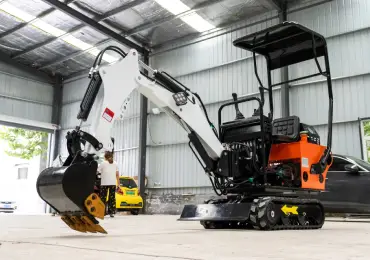

Micro Digger Manufacturing with YUFAN
>>Years of Manufacturing Experience for Micro Diggers.
YUFAN has been producing micro diggers for years. Our accumulated knowledge is applied to every aspect of digger manufacturing. We constantly enhance performance through innovation.
>>Quality Always Comes First.
We prioritize quality by using 100% match components. All diggers, including parts, are of high quality.
>>Customization Options.
We provide OEM/ODM options to meet your specific needs. Including logo design, function customization, colors, and various other features. YUFAN micro diggers can be customized to reflect your brand identity and preferences!

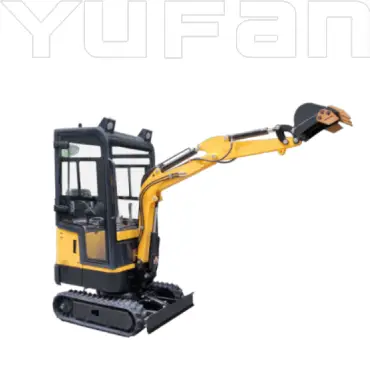

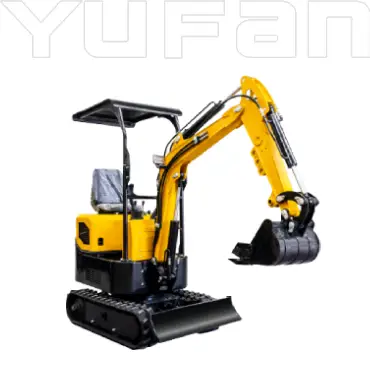

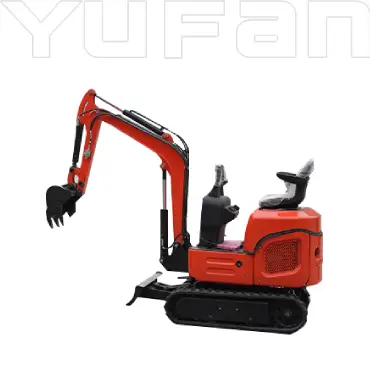

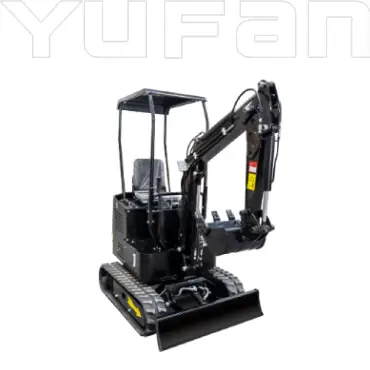

Micro Diggers Models and Specifications
Engine Koop/Yanmar Power 7kW Bucket capacity 0.03m³ Max. digging d 1300mm Max. dumping h 2350mm
Engine Koop/Yanmar Power 7.6kW Bucket capacity 0.03m³ Max. digging d 1600mm Max. dumping h 2680mm
Engine Koop/Yanmar Power 7kW Bucket capacity 0.03m³ Max. digging d 1700mm Max. dumping h 2580mm
Engine Koop/Kubota/BT Power 14/10.2/11.8kW Bucket capacity 0.03m³ Max. digging d 1700mm Max. dumping h 2580mm
Engine Changchai/Yanmar Power 20kW Bucket capacity 0.03m³ Max. digging d 2000mm Max. dumping h 2750mm
Engine Kubota/Yanmar Power 10-11.8kW Bucket capacity 0.03m³ Max. digging d 2200mm Max. dumping h 3200mm
One Year Warranty Protection
Micro diggers are complex machines that require regular maintenance. YUFAN provides a one-year standard warranty to help you deal with breakdowns in this time frame.
>We cover the cost of necessary repairs or replacement, as local repair is costly.
>We stand behind our machines and are willing to help you address potential issues.
>Our warranty protection provides easy access to timely support and assistance from the online technical team.
It’s our long-term commitment to your satisfaction. With a state-owned background, we value our reputation and brand image more than profits. Join as a dealer now!
Quality Control Excellence for YUFAN Micro Diggers
We meticulously oversee quality throughout the entire manufacturing process, from sourcing to testing. And recorded for future reference and tracking.
We employ the latest technology to ensure manufacturing adheres to the highest standards. YUFAN delivers micro diggers not only meet but exceed your expectations.
We have a skillful team with years of experience and product knowledge. And a majority of the team members own a degree and relevant qualifications.
We conduct tests to maintain the highest quality standards in all aspects of micro diggers. Our tests and inspection guarantee you receive high-performing diggers.
Frequently Asked Questions
The size of a digger is determined by its weight.
Diggers under 5 tons are classified as micro diggers, with the most common models ranging from 1 to 1.8 tons. These are primarily used for landscaping or small garden renovations.
Diggers under 15 tons are considered small diggers, with 5 to 8 tons being the mainstream. These are mainly used for trenching, road construction, and similar tasks.
YUFAN Machinery’s micro diggers include:
0.8 ton, 1 ton, 1.2 ton, 1.5 ton, 1.8 ton, 2.0 ton, 2.2 ton, 2.5 ton, and 3.0 ton models, and can be equipped with different engine brands according to your requirements.
The typical width range of a micro digger is as below:
▪️Narrow type (for confined spaces): approx. 80cm–100cm (e.g., YUFAN YFT10, YUFAN YFT12)
▪️Standard type: approx. 100cm–130cm (e.g., YUFAN YFT15, YUFAN YFT17, YUFAN YFT18)
Key influencing factors:
Tracked vs. wheeled: Tracked diggers are usually narrower, while wheeled ones may be slightly wider.
Expandable design: Some models (like YUFAN YFT10) feature retractable undercarriages, which can narrow the width to under 70cm to fit through tight doorways.
YUFAN Machinery micro digger dimensions:
- YFT08: 2430×720×1390mm (width: 72cm), track width: 15cm
- YFT10: 2700×910×1480mm (width: 91cm), track width: 18cm
- YFT12: 2870×1000×2023mm (width: 100cm), track width: 18cm
- YFT15: 2775×1000×2200mm (width: 100cm), track width: 18cm
- YFT17: 2950×1100×2200mm (width: 110cm), track width: 18cm
- YFT18: 3250×1100×2300mm (width: 110cm), track width: 23cm
1. Start the engine: Insert the key and start the engine. Let it idle for a few minutes to allow oil to fully lubricate all parts.
Adjust the seat to a comfortable position and fasten the seatbelt.
2. Control levers:
A micro digger includes:
- Left joystick: Controls boom up/down and arm extension (push forward to lower the boom, pull back to lift).
- Right joystick: Controls bucket open/close and body rotation (move left/right to swing).
- Foot pedal/knob: Adjusts travel speed (some models support stepless speed control).
Typical controls include:
① Opening and closing the bucket
② Raising and lowering the boom
③ Extending and retracting the arm
④ Moving the tracks
3. Travel operation:
- Tracked digger: Push/pull left and right levers (e.g., push left lever forward = left track forward).
- Wheeled digger: Use a steering wheel or handle to control direction.
4. Digging operation:
Position: Align the digger with the digging point and keep it stable.
Lower the arm: Push the left joystick forward to lower the boom; use the right joystick to dig the bucket into the soil.
Scoop: Pull the right joystick back to close the bucket and left joystick back to lift the arm.
Swing & dump: Swing the body using the right joystick to the dump point and push the joystick forward to release the soil.
The digging depth varies depending on the tonnage of the micro digger.
0.8 ton micro digger – YUFAN YFT08 (1764 lbs)
- Max digging depth: 1.3m
- Weight: 0.8 ton
- Power: 7kW
- Dumping height: 2350mm
- Walking speed: 2.5 km/h
- Max gradeability: 30°
1 ton micro digger – YUFAN YFT10
- Max digging depth: 1.6m
- Weight: 1.0 ton
- Power: 7.6kW
- Dumping height: 2680mm
- Walking speed: 2.5 km/h
- Max gradeability: 30°
Zero tail swing diggers are designed with a counterweight that stays within the width of the tracks or undercarriage. It allows the digger to rotate 360 degrees without extending beyond the track width. The feature is particularly beneficial in confined or tight spaces with limited room to maneuver.
Tight tail swing excavators have a larger counterweight that may extend beyond the track width. Still, it provides significant benefits in confined areas compared to conventional excavators.
Micro diggers fall within the category of zero and tight tail swing diggers. At YUFAN Machinery, both categories are available. They are popular for landscaping, construction, and utility work in tight urban environments.
Contact YUFAN now to explore all the available attachments for diggers.

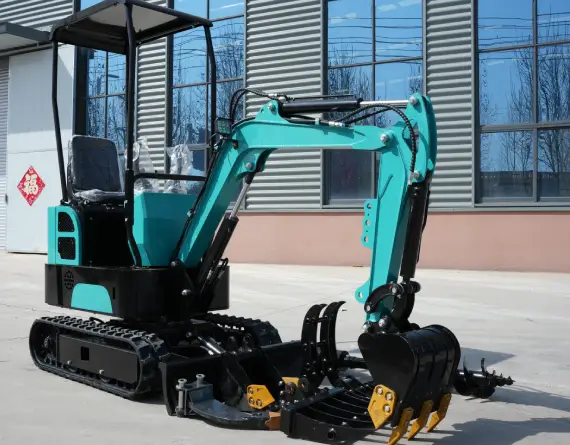

Bucket: General bucket with teeth, General purpose bucket without teeth, Tilt Bucket.
Hydraulic attachment: Hydraulic thumb, Hydraulic grapple, Hydraulic quick adaptor.
Others: Auger, Breaker hammer, Rake attachment, Ripper, Mechanical wood grapple.
