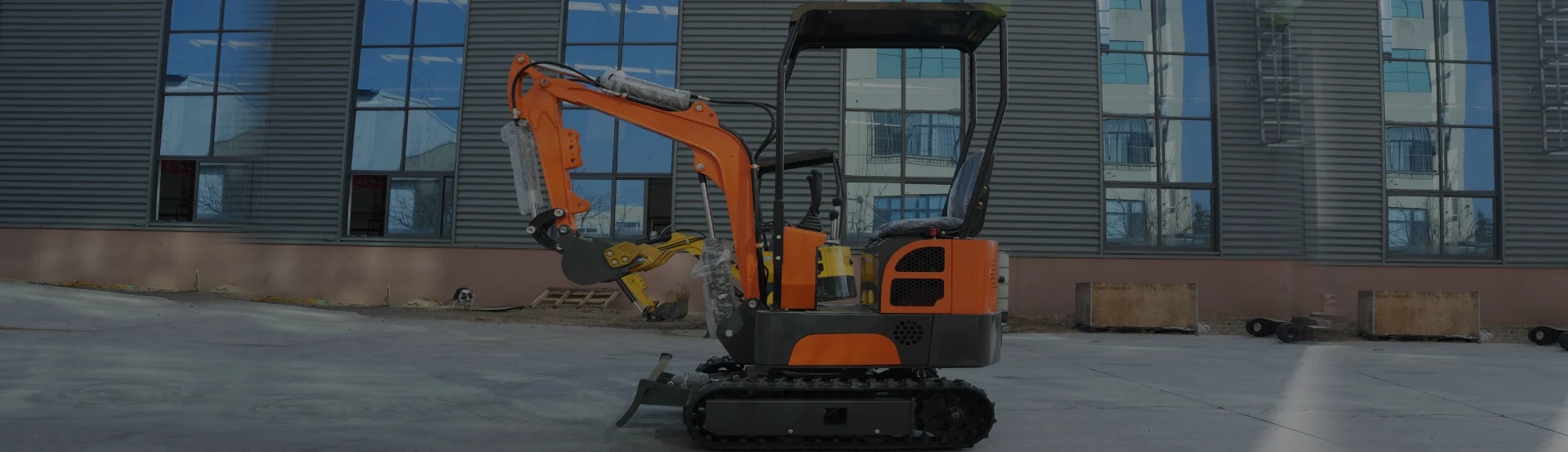

Small Framework with Infinite Power: YFT10
Chinese mini excavator 1 ton model, YFT10, made by YUFAN excavator factory. It’s designed to bring you a high level of performance and productivity at your job site. Even in the most crowded working places.
1 ton mini excavator is the perfect solution for home use. Combining lightweight and compact size to navigate delicate ground without causing damage. YFT10 is equipped with a Koop engine and Yanmar as your alternative option. Quality engine ensures long-lasting power and service life.
1 ton excavator is easy to transport on a trailer. Make it your must-have equipment for smaller-sized construction and demolition work!
*YUFAN 1 ton excavator meets the EPA and Euro V emission standards.
1 Ton Excavator Detailed Specifications
The 1 ton excavator comes with a Koop 192 engine, delivering 7.6kW of power. The Koop engine is a great choice for saving energy and being eco-friendly. At the same time, providing high power output and the added benefits of low noise and emissions. It meets the EPA and Euro V emission standards.
1-ton excavator features a zero-tail swing design for a zero-turning radius. So it won’t damage the surrounding area during operation.
| Item | Specification |
| Engine type | KOOP192F |
| Power types | Single-cylinder, four-stroke, air-cooled, vertical |
| Displacement (L) | 0.499 |
| Rated power (HP / rpm) | 7.6/3000 |
| Horsepower (HP) | 10.3 |
| Fuel types | Diesel oil |
| Fuel Consumption (g / kwh) | 275 |
| Fuel tank capacity (L) | 5.5 |
| Oil capacity (L) | 1.65 |
| Overall machine size (mm) | 2870*1000*2030 |
| Trace width (mm) | 1200 |
| Trace ground length (mm) | 180 |
| Max maximum depth (mm) | 1700 |
| Undo maximum height (mm) | 1745 |
| Excavmaximum height (mm) | 2585 |
| Climbing capacity | 30° |
| Walking speed (km/h) | 0-2.5 |
| Bucket excavation force (kn) | 11.5 |
First Class Configuration for 1 Ton Excavator

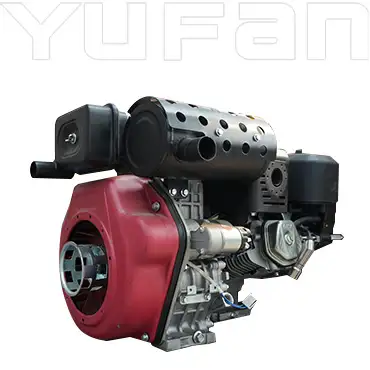

Engine· Durable engine for reliable operation in harsh conditions.
· Flexible coupling absorbs shocks.
Oil Supply· Low oil levels trigger alarm system.
· Hydraulic tank breathing valve with pressure compensation.
Running System· Travel motor with 3 hoses.
· Pressure relief valve to ensure optimal performance and longevity.

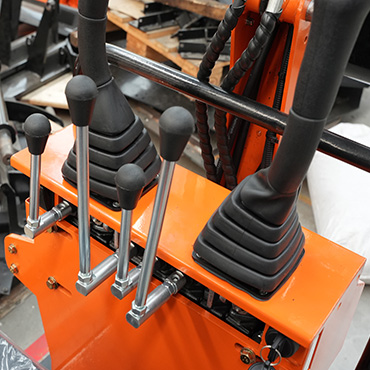

Direction Control Valve· Directing flow between system parts.
· Correct installation is essential.
Excavator BoomAllowing the boom to swing to the side for precise digging and trenching.

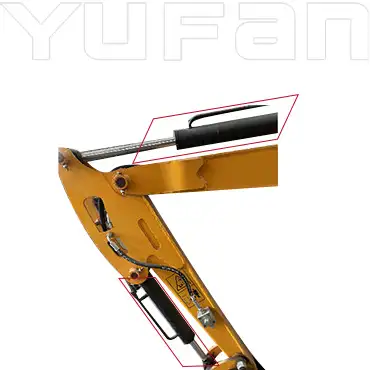

Bucket Cylinder· Help move and adjust position while digging.
· Flexible manipulation.

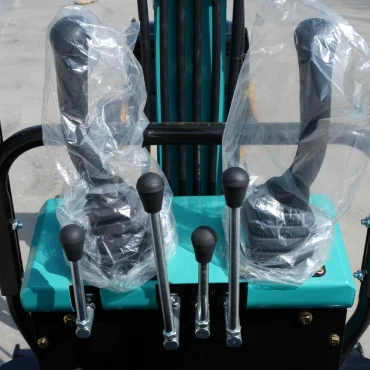

Two Speed Travel- Two-speed controls, high and low speed.
- Adjust for different work conditions.

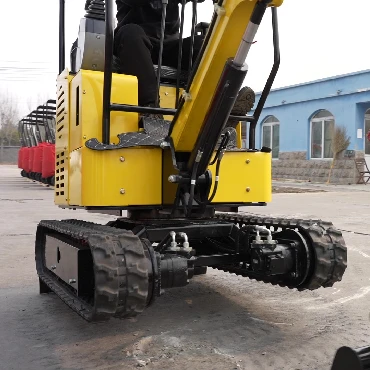

Variable Track WidthAdjust the track width to fit through narrow passages or increase stability.

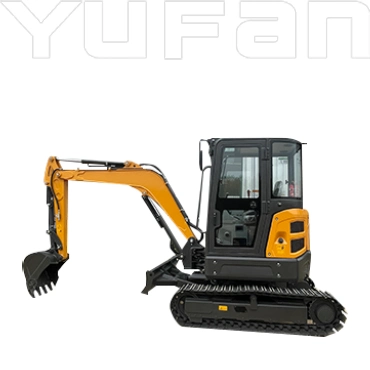

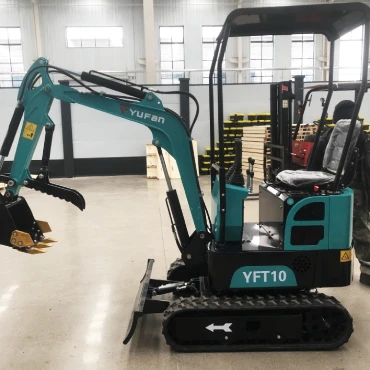

Zero Tail SwingThe excavator’s tail remains within the track width without hitting the surroundings.

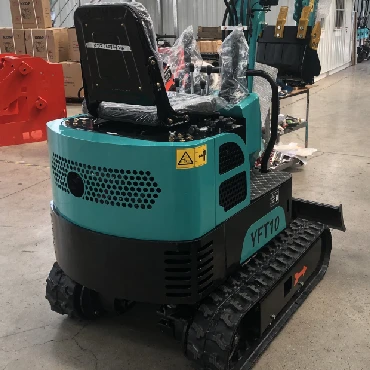

Anti-Collision HoodThe strong hood design protects the engine and important parts and reduces damage.
One Year Warranty
Every machine we sell comes with a one-year warranty for parts and components. Just keep in mind, our warranty doesn’t cover the usual wear and tear. It also doesn’t include shipping or labor costs. Once sold, the machine cannot be returned or refunded.
Whenever you have an issue with the machine, you can always reach out to us. We have a team of professionals ready to assist you anytime you need!
Lead Time and Shipping
–Every YUFAN mini excavator undergoes a meticulous assembly process.
–We carefully inspect all parts and the entire machine for optimal performance.
–Your machines are securely packaged before dispatch.
–The lead time for 1 ton excavator would take about 3-4 weeks.
–We value your satisfaction and appreciate your patience as we ensure machine quality and safe delivery.
What Our Customers Say

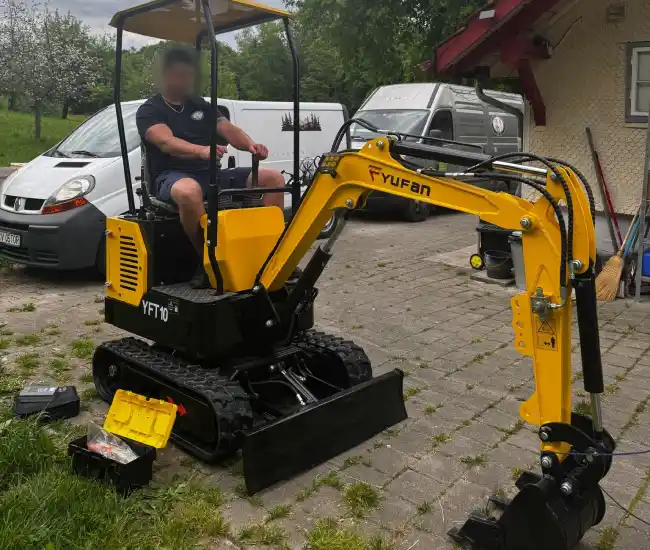

Hallo Shannon der Bagger haben wir gestern abgeholt. Sindsehr zufrieden
Freue mich auf zukünftige zusammenarbeit– From a German customer
“We picked up the excavator yesterday. Very satisfied! Looking forward to future cooperation.”
YUFAN™ always prioritize customer satisfaction. From production to delivery, we pay attention to every detail to ensure you receive not just a machine, but a reliable partner for your construction work.
4 Reasons to buy a YFT10 Mini Excavator
The 1-ton excavator is great for digging shallow trenches, ideal for residential utility work up to 3 feet deep. It can also handle sewer lines up to 4.5 feet deep.
1 ton digger is easy to maintain. Even if you’re not very mechanical, you can replace parts yourself with a bit of practice!
We can customize your digger with your preferred engine. We can also paint the machine to match your business image. Other also includes: rubber or steel tracks, cab or canopy.
1 ton excavator is a cost-effective option. Ranging from $2800 for standard models, $3900 for advanced configurations. Get quality machine with affordable price!
Best 1 ton Mini Excavator: Dig Deeper, Work Smarter!
YUFAN provides a comprehensive OEM manufacturing service. Our machines are made for architectural tasks, landscapes, and small-scale demolitions.

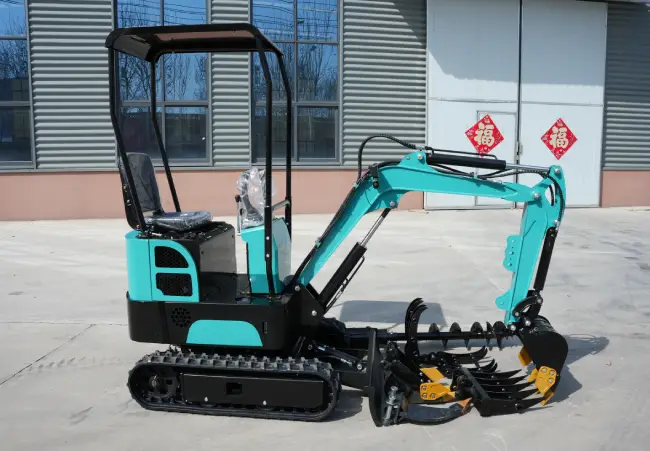

Excavator implements such as a quick-attach bucket greatly assist many of the above tasks. Ultimately, our range of extensions is available so that your 1 ton digger can meet your needs anytime!
Contact YUFAN today to find all the available attachments for your YFT10 excavator!

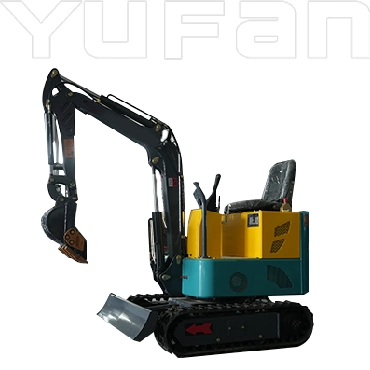

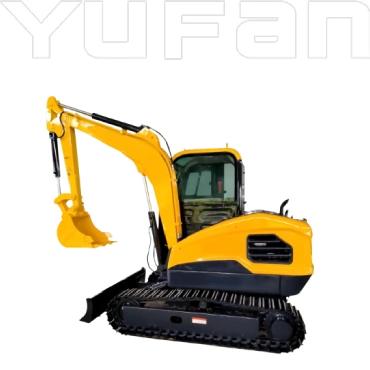

Mini Excavator Manufacturing for Global Market
Mini excavators fall under our core machine category. With smart technology and features, we present you with the best mini excavator with proven performance.
Quality First. Every Time. We exclusively acquire components that 100% match our standards. Alongside our in-house parts, all the equipment meets high-quality standards.
Available in OEM/ODM Option. We also support you with logo making, function specialization, color customization, and more.
Timely Technical Support. We offer comprehensive services from pre-sale to after-sales support throughout your machine’s life span!

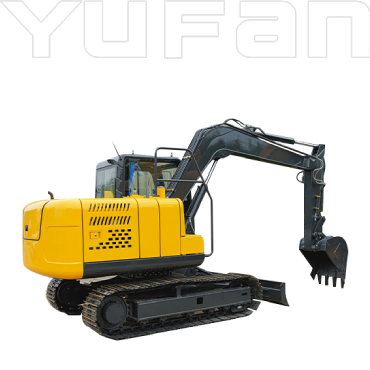

Chinese Excavators Made for Household and Construction
YUFAN excavators are categorized into two ranges: for household and construction. The household excavators range from 0.8 tons to 8 tons. Designed for general duties such as gardening, landscaping, farming, and other household activities. Our 1 ton excavator, YFT10, falls within this range and is suitable for various general uses.
Discover all the different sizes of excavators for various purposes! We have a wide selection to meet your every need!
FAQs
Using a 1 ton mini excavator is pretty straightforward. Here are some simple steps to guide you through the process.
Step 1. Get familiar with the machine.
Familiarize the excavator functions and its controls. Check for any safety features and read the operator’s manual.
Step 2. Start the Excavator.
Start the engine. Please be reminded with the controls for moving forward, backward, turning and stopping.
Step 3. Adjust the Seat and Mirrors.
Adjust the seat to a comfortable position and also the mirrors, for a better visibility.
Step 4. Operate the Arm and Bucket
Use the joystick or control and move the boom and bucket. Get hands-on practice for lifting, lowering, and swinging the boom. Remember to practice in an open area.
Step 5. Practice Digging.
Drive the excavator close to the digging site. Lower the bucket to the ground and control the bucket to dig into the soil.
Step 6. Loading Materials.
Once you’ve scooped up material with the bucket, lift it and move it to a different location. Practice the process a few times.
Step 7. Practice Turning.
Practice turning the excavator and operating it around obstacles.
Step 8. Shut down the Machine.
Once you’ve practiced all basic functions, park the excavator on flat ground. Lower the boom and bucket to the ground. Turn off the engine and remove the key.
Step 9. Basic Maintenance.
Check fuel and oil levels, refueling them when necessary. Keep the tracks clean and inspect the excavator for any visible problems.
Typically We will give a response within 6-12 hours. YUFAN has a team of customer representatives who are constantly aware of customer inquiries. You may reach out to us through Email (info@yufanmachinery.com) or WhatsApp(+86 18560052759). Either way, it is welcomed.
You may order in bulk as we provide OEM/ODM per your requirements. Our OEM covers the engine, hydraulics, cab, colour, and logo.
The minimum order quantity is 1 set, and it’s entitled to all models.
When choosing the right excavator for your projects, you should consider factors such as engine power, size, bucket capacity, brand, quality, and price. You may want to consult YUFAN online technician support to guide you through the whole process and get to know the wide range of YUFAN excavator collections.

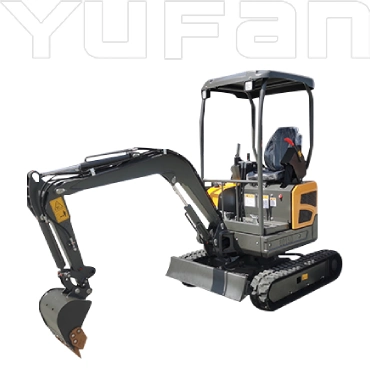

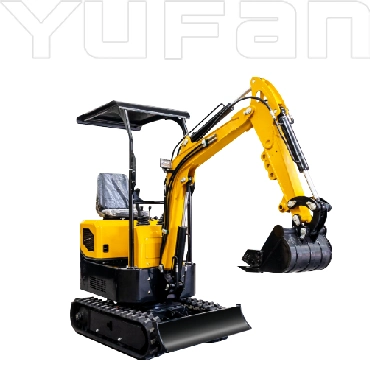

As a leading excavator manufacturer in China, YUFAN offers a wide range of mini excavators. That includes 0.8 tonne, 1 tonne, 1.5 tonnes, 2 tonnes, 2.5 tonnes, 3 tonnes, 3.5 tonnes, and 5 tonnes. Contact us now to start the consultation!
The compact design of the 1 ton excavators makes it challenging to fit a container underneath to catch the used oil. Here’s a practical solution:
1. Use the excavator’s arm to lift the front part of the machine.
2. Position the excavator so that it is front-high and rear-low.
3. This tilt will allow the oil to flow down and out of the machine, making it easier to collect.
Yes. Having the right accessory attachments is essential when working with mini excavators. Their versatility and size make them ideal for land-clearing operations, as a larger machine may not be able to access confined spaces.
A variety of attachments can increase the scope of what our excavators can do. Attachments and implements allow them to navigate ditches, slopes, roadsides and open areas. YUFAN provide you with plenty of attachments for your excavators. It’s easy to find the implements suitable for any of your operations, including land clearing.
1 ton excavator from YUFAN is an excellent option for a wide range of excavation tasks. Its capabilities include digging trenches, breaking holes, removing waste, and even mining. With its powerful engine, our 1 ton excavator is perfect for all your project requirements.
The standard equipment includes a radio, motor pre-heater, work lights, indicators, and wipers. Mirrors and warning lights can be added based on your specific needs. If you need more detailed info, contact our team today!
We’ve simplified it for you. Common spare parts like air filters, oil filters, diesel filters, and hydraulic oil filters are easy to find. And with our spare parts warehouse, you get what you need within 3 days.
Our machines’ general parts follow international standards, ensuring they’re a universal fit – hoses, bolts, nuts, connectors, and sockets- we’ve covered it for you!
No. The transmission shaft drives the travel of the machine. And the 1 ton excavator’s loading bucket and digging bucket are powered by the hydraulic system. This double design ensures optimal performance and efficiency in different operational aspects.
If you have specific questions about the operation or features of our 1 ton digger, feel free to reach out to our expert team for more detailed information.
