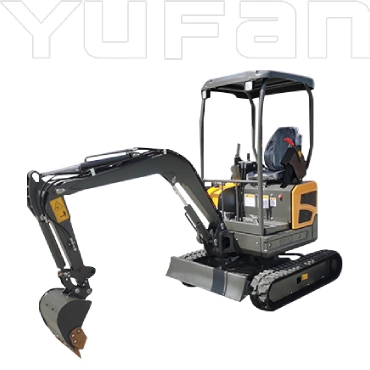

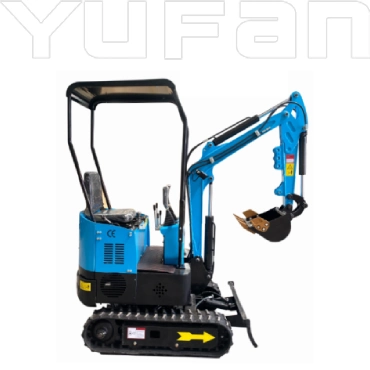

China Mini Excavator 1.2 Ton
The YFT12 is a zero-tail swing excavator weighing 2646lbs. It has exceptional digging depth and impressive work capability. It can easily access confined spaces with a narrow width of 900mm.

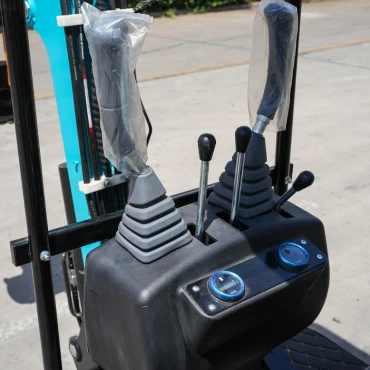

1.2 ton digger is a compact machine that provides a perfect balance of small size and high power. The Koop 192 engine ensures reliable performance. The operator’s comfort is prioritized with an adjustable bucket seat and an ergonomic control layout.
* YFT12 meets the EPA and Euro V emission standards.
YFT12 Excavator Detailed Specifications
| Item | Specification |
| Engine type | KOOP192F |
| Power types | Single-cylinder, four-stroke, air-cooled, vertical |
| Displacement (L) | 0.499 |
| Rated power (kw / rpm) | 7.6/3000 |
| Horsepower (HP) | 10.3 |
| Fuel types | Diesel oil |
| Fuel consumption (g / kwh) | 275 |
| Fuel Capacity (L) | 5.5 |
| Oil capacity (L) | 1.65 |
| Overall machine size (mm) | 2870*1000*2030 |
| Trace ground length (mm) | 1200 |
| Trace width (mm) | 180 |
| Max maximum depth (mm) | 1700 |
| Unload maximum height (mm) | 1745 |
| Excavating maximum height (mm) | 2580 |
| Climbing capacity | 30° |
| Walking speed (km/h) | 0-2.5 |
| Bucket excavation force (kn) | 11.5 |
| Specifications | |
| Bucket Capacity | 0.025 |
| Swing Speed | 0-12 |
| Gradeablity | 35 |
| Max.Bucket Digging Force | 9 |
| Max.Arm Digging Force | 5.5 |
| Engine Model | D722-E4B |
| Power/revolution speed | 10.2/2500 |
| Operating weight | 1200 |
| System Pressure | 17 |
| Machine size | |
| Dimension Length*Width*Height | 3032×760/980×2270 |
| Cabin Height | 2270 |
| Track length | 1345 |
| Wheel(track) Distance | 580/760 |
| Minimum ground clearance | 125 |
| Tail Swing Radius | 550 |
| Working range | |
| Max.Digging Height | 3107 |
| Max.Dumping Height | 2172 |
| Max.Digging Depth | 1838 |
| Max.Vertical Digging Depth | 1709 |
| Max.Digging Reach | 3442 |
| Min.Swing Radius | 1398 |
| Counterweight hight | 395 |
| Ground length(Transportation) | 1597 |
YFT12 Excavator Featured Highlights

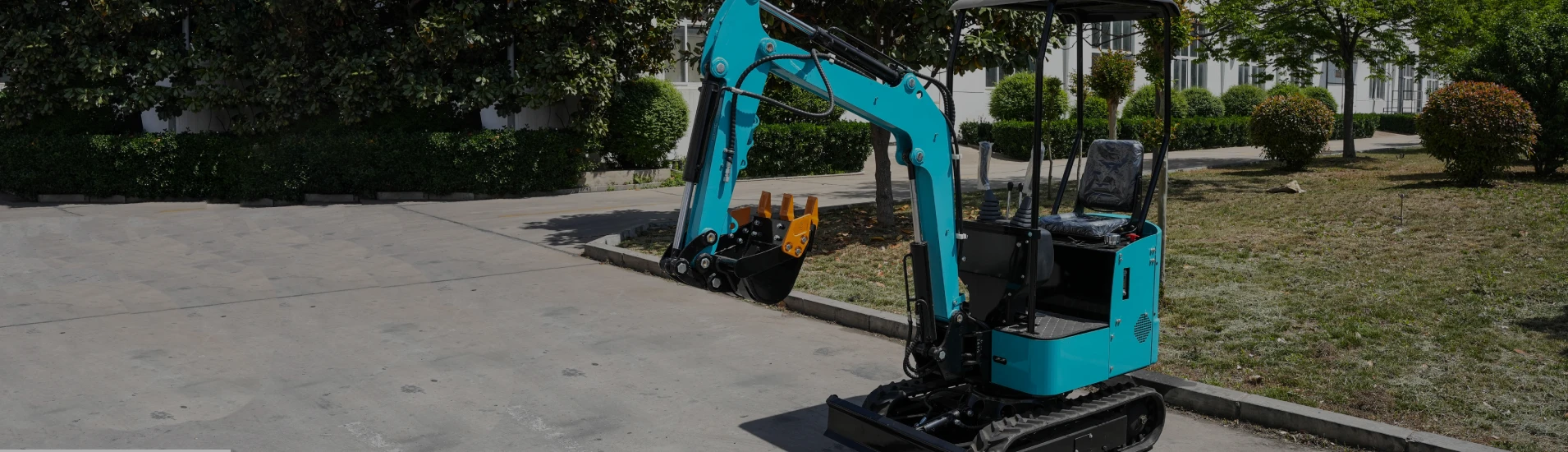

YFT12 Excavator is small and easy to move around in tight spaces like cities or crowded construction sites.
YFT12 can do many construction work efficiently, like clearing sites, digging and moving materials.

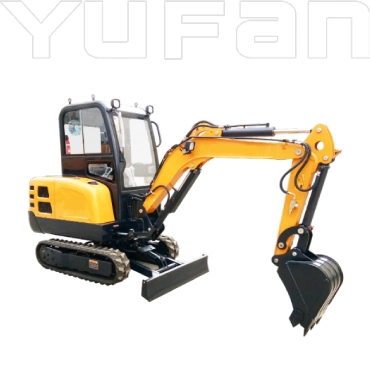

YFT12 has impressive reach and dumping capabilities. It helps you to lift materials efficiently.
How Your Mini Excavator Is Made: Excavator Manufacturing Process

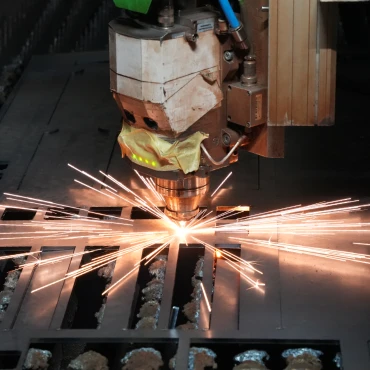

We use laser technology to cut metal sheets with extreme accuracy. This is to ensure perfect alignment for excavator parts.

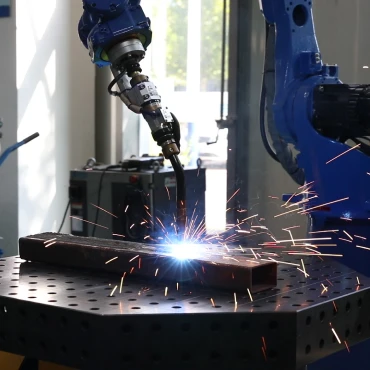

An automatic welding system makes it faster to keep everything secure. The welding technology has greatly improved production efficiency.

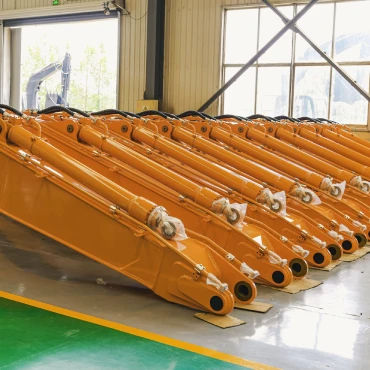

Before we put everything together, we carefully paint parts like the frame. You get to choose the color you want for your excavator.

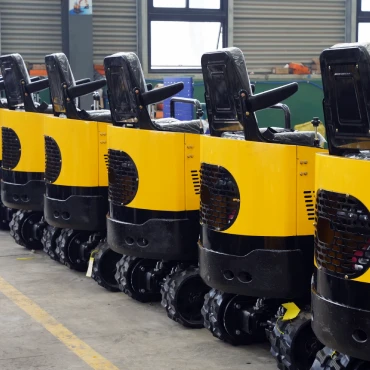

A throughout quality inspection will take place after the assembly process. We make sure your excavator performs well.

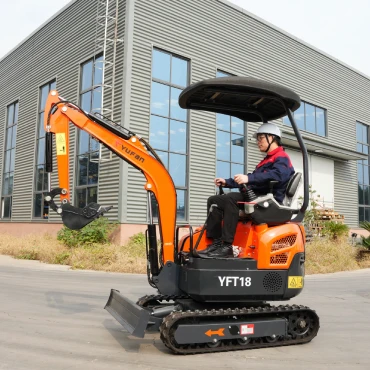

Every new excavator will go through several performance tests in our testing zone. We make sure everything is working as it should.
Excavators without custom features normally takes about 2-3 weeks to finish. With custom features, the process will be slightly longer.
Become Our Machinery Partner
Get immediate access to high-quality machines! YUFAN operates three individual factories to manufacture types of excavators, loaders, and backhoes!
Enjoy competitive prices! We make sure you can offer attractive deals to customers in your region while securing profits for yourself.
With our wide range of machines, you’ll have more chances to reach a larger market and meet diverse needs.

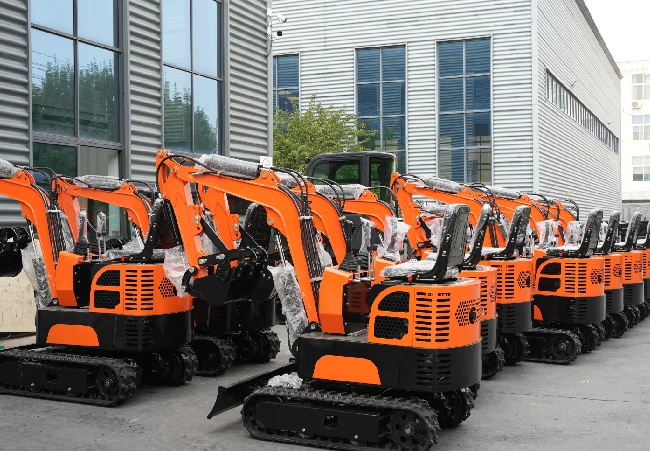

Mini Digger Factory Strength
-Factory Production and Supply
We warmly invite dealers and business partners to visit our factory in China.
-Bulk Order Fulfillment
Excavator prices are negotiable. Enjoy special discounts for purchasing multiple units.
-Prompt Customer Service
Our customer service team always responds to you promptly. We value your feedback.
-Machine Customization
Looking for custom features for your micro digger? We’ll build it to fit your real-world needs!

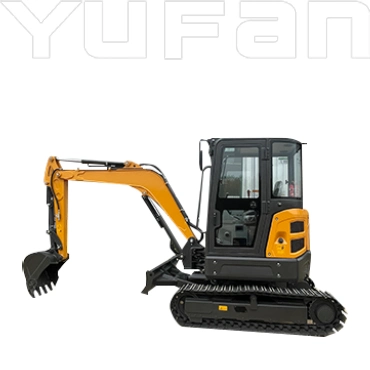

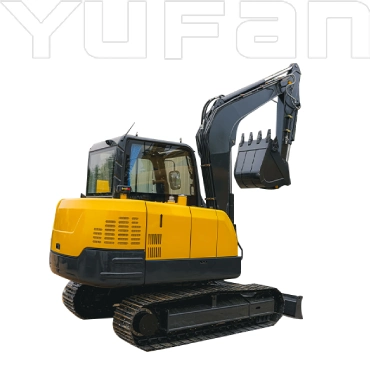

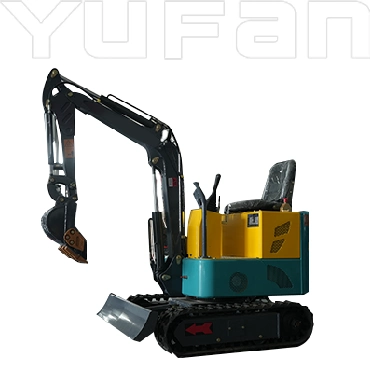

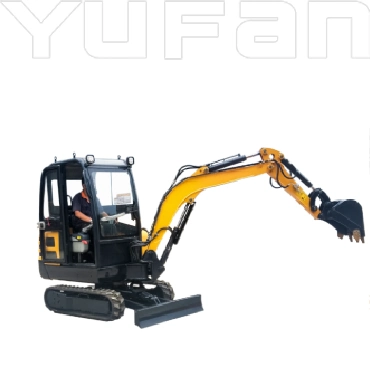

Looking for Other Sizes of Excavators?
FAQs
At YUFAN, we mainly provide two types of excavators: the ultra-compact range and the earthmoving & construction range. The ultra-compact excavator, ranging from 0.8 to 5 tons, is specifically designed for gardening, landscaping, and yard work.
On the other hand, our earthmoving collection offers a variety of sizes, including small, medium, and extensive options ranging from 1.5 tons to 60 tonnes. If you have any questions about our machines or need assistance with anything related, please don’t hesitate to contact the knowledgeable YUFAN team. We’re here to help you find the perfect solution!

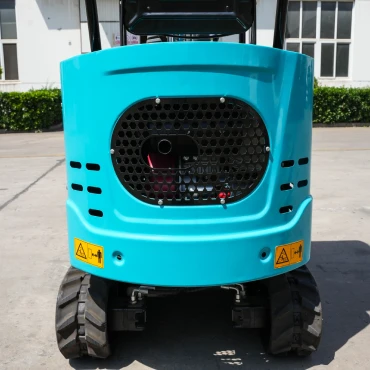

We understand your concern about engine cooling and are here to help. Firstly, it’s important to note that the engine has a built-in fan. It is generally sufficient for normal usage and doesn’t need extra fans. However, if you have specific requirements for additional cooling, the YFT12 model can accommodate a maximum of one additional fan on each side. It’s important to consider that if you also need to install a hydraulic oil cooler, there’s only space available for one additional fan.
If you have any further questions or need assistance, please feel free to reach out to us.
YUFAN always puts you in the first place. Rest assured with YUFAN’s after-sales commitment.
– All-day Support. Our services are available around the clock for timely responses.
– WhatsApp Assistance. In case of issues, our team creates a dedicated WhatsApp group, bringing together you and the technical teams. This ensures prompt and professional responses until the matter is resolved. Your satisfaction is our priority.
Currently, the lightest weight of the YUFAN mini excavator is YFT08, which is 0.8 tons, as in 1600 lbs. For any other sizes, if you don’t see it on our website, you may consult YUFAN customer representatives for further information.

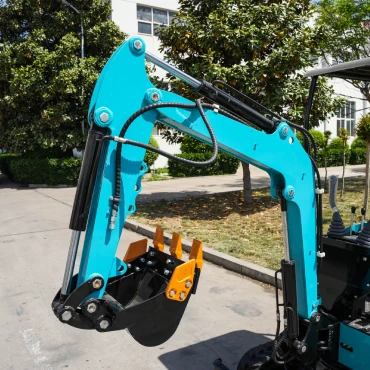

To better assist you with your project construction, YUFAN 1.2 ton mini excavator has a standard 400mm bucket.
Here are the Hydraulic pump specifications for YUFAN 1.2 ton mini excavator:
> Theoretical displacement: 10.4
> Maximum speed: 4000
> Pressure: Up to 25MPA
> Oil inlet: M27X2
> Oil outlet: M22X1.5
> Fluorine rubber seal
At YUFAN, we provide not only efficient machines but also OEM solutions. We fully understand that everyone’s requests vary differently due to corresponding applications. We specialize in providing OEM solutions to meet your specific needs.
We are happy to install a hydraulic oil cooler for your 1.2-ton mini excavator. This component will help cool down the engine and extend its lifespan after a long time of working.
Yes! Our excavator machines can accommodate both hedge trimmer and mower attachments. Our hedge trimmers come in various sizes, including 600mm, 800mm, 1000mm, 1200mm, and 1500mm. Similarly, mower attachments are available in sizes ranging from 600mm to 1200mm.
