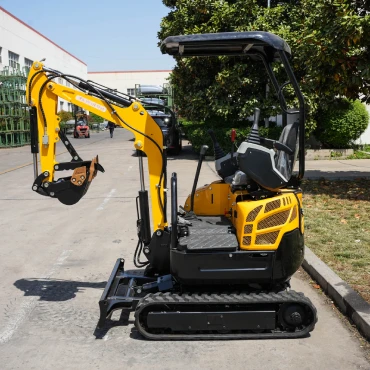

Zero Swing Excavator 1.8 Ton
1.8 ton excavator is manufactured by YUFAN excavator factory in China. Being one of the most popular machines between 1 to 2 tons, it performs wide range of tasks for you.
>>Zero tail swing allows you to work close to obstacles without the risk of damaging the surrounding environment.
>>Equipped with a fuel-efficiency engine that meets EPA or Euro V emission standards. It helps you reduce operating costs and environmental impact.
>>Comfort working space with intuitive and responsive controls ensures precious and easy operation.
>>Attach to a range of attachments, helping you achieve many tasks from digging, trenching, demolition, and material handling.
1.8 Ton Excavator Detailed Specifications
| Item | Specification |
| Engine type | Kubota D722 |
| Power types | vertical, water-cooled, four-stroke |
| Displacement (L) | 0.719 |
| Rated power (kw / rpm) | 14.9/3600 |
| Horsepower (HP) | 20.3 |
| Fuel types | Diesel oil |
| Fuel consumption (g / kwh) | 5 |
| Fuel Capacity (L) | 1800 |
| Oil capacity (L) | 0.05 |
| Overall machine size (mm) | 3250*1100*2300 |
| Trace ground length (mm) | 1300 |
| Trace width (mm) | 230 |
| Max maximum depth (mm) | 2200 |
| Unload maximum height (mm) | 2300 |
| Excav maximum height (mm) | 3200 |
| Climbing capacity | 32° |
| Walking speed (km/h) | 0-3 |
| Bucket excavation force (kn) | 18 |
| Specifications | |
| Item | Value |
| Bucket Capacity | 0.06 |
| Swing Speed | 10-12 |
| Gradeability | 35 |
| Max. Bucket Digging Force | 14 |
| Max. Arm Digging Force | 10 |
| Engine Model | 3TE25 |
| Power/revolution speed | 18.4/2350 |
| Tire Model | – |
| System Pressure | 18 |
| Working range | |
| Max. Digging Height | 3391 |
| Max. Dumping Height | 2290 |
| Max. Digging Depth | 2125 |
| Max. Vertical Digging Depth | 1771 |
| Max. Digging Radius | 3851 |
| Min. Swing Radius | 1701 |
| Max. Dozer Blade Lifting Distance | 230 |
| Max. Dozer Blade Cutting Distance | 275 |
| Boom Swing Angle (Left) | 75 |
| Boom Swing Angle (Right) | 45 |
| Machine size | |
| Item | Value |
| Dimension (Length*Width*Height) | 3655*1050*2232 |
| Cabin Height | 2232 |
| Sprocket to Idler | 1231 |
| Wheel(Track) Guage | 820 |
| Minimum ground clearance | 210 |
| Tail Swing Radius | 1000 |
Various Engine Models to Meet Your Needs
This 1.8 ton mini excavator can be equipped with different engine models, such as Kubota D722, Kubota D902, Briggs & Stratton, Koop, Yanmar 370, and Yanmar 374, Laidong 385. There is always one that suits you.
YFT18 Features and Advantages
· Designed for quick transportation.
· Easy access to maintenance and cleaning.
· Speeds up turnaround times.
· Handle the most challenging tasks.
· Equipped with quality and durable components.
· Prioritized site safety.
· Creative solutions to enhance performance.
· Visibility in all directions.
· Robust steel build for lasting reliability.
· An extendable chassis adds versatility.

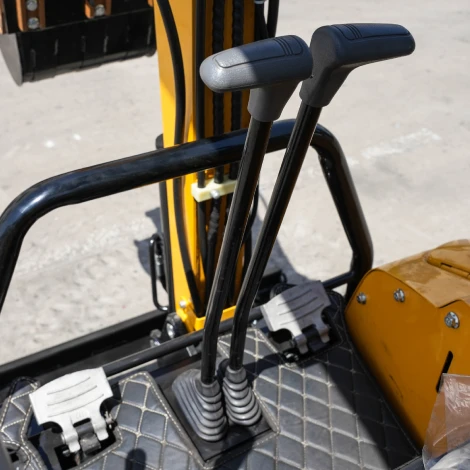

· Intuitive controls for user-friendly experience.
· Streamlined interface ensures ease of use.

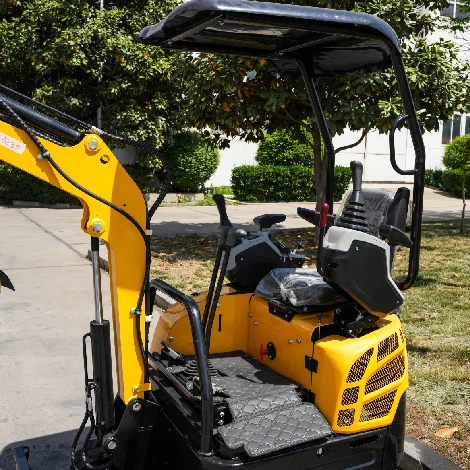

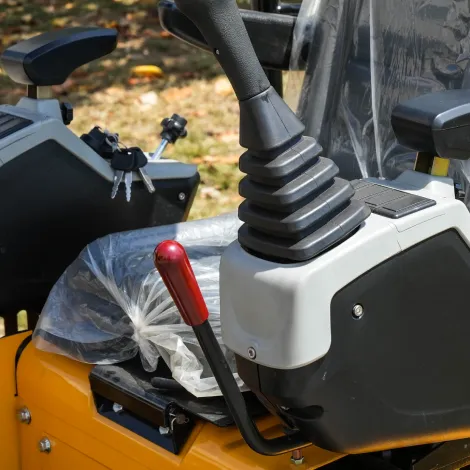

Equipped with hydraulic pilot lock.
Reduces risks of misoperation.
Ensures safer machine operation.

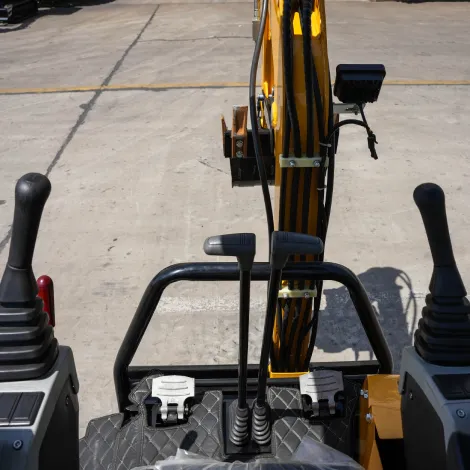

Pilot control makes work easier.
Operators feel less fatigue.
Improves comfort during operation.
Choose functions for each jobsite.

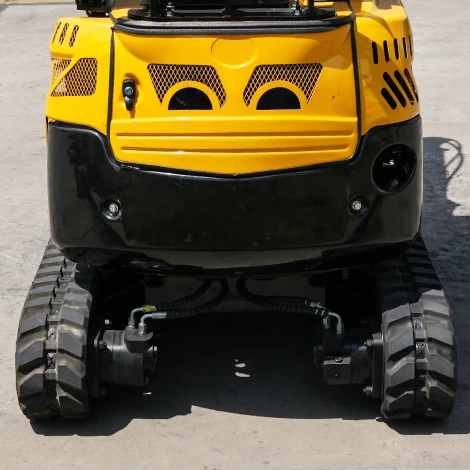

Optional chassis extend and retract.
Optional boom swing function available.

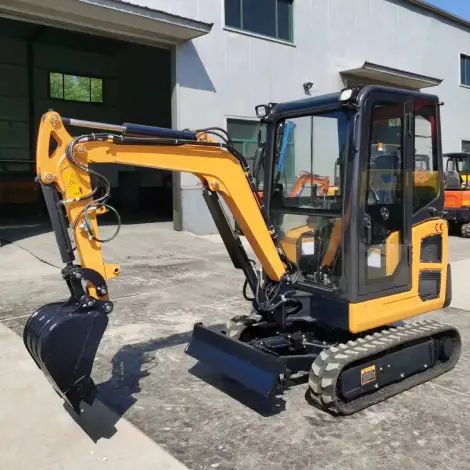

Optional enclosed cabin available.
Isolates dust and outside noise.
Provides quieter working environment.

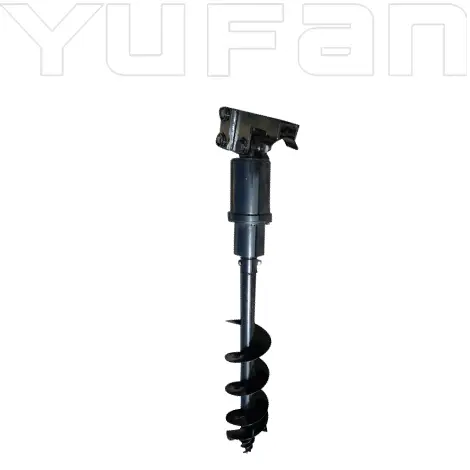

Top 3 Attachments for 1.8 Ton Excavator
Its hydraulic power ensures performance in construction, landscaping, and agriculture.

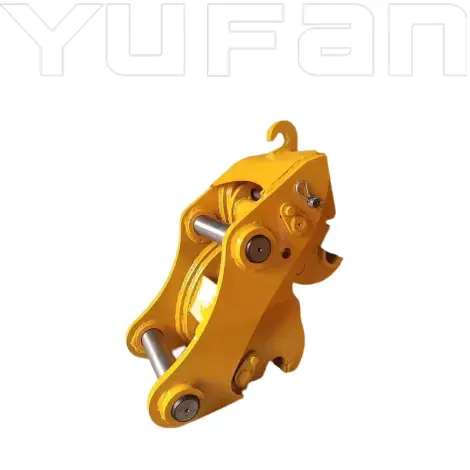

Quick coupler helps in optimizing productivity during digging, lifting, and grading tasks.

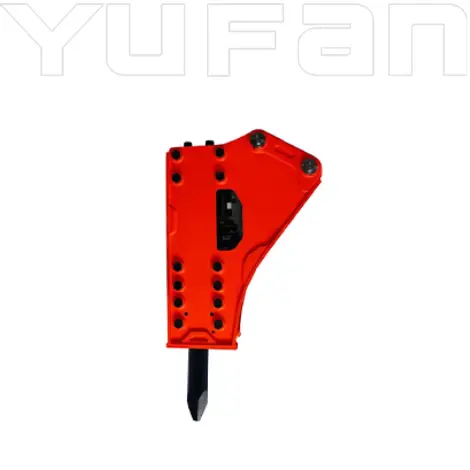

It helps in breaking tough materials like concrete and rocks for demolition and road maintenance.

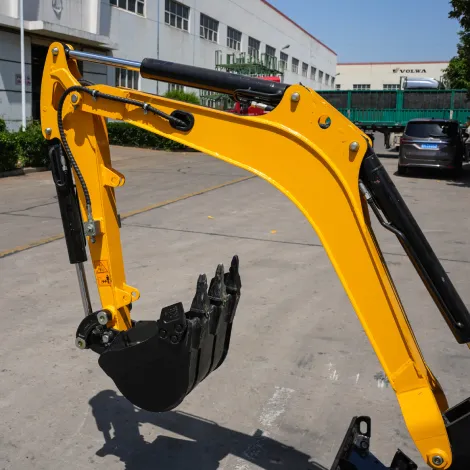

Upgrade Options to Expand Capability
✅ Stable and reliable extendable chassis system allows the 1.8 ton mini excavator to pass through narrow passages.

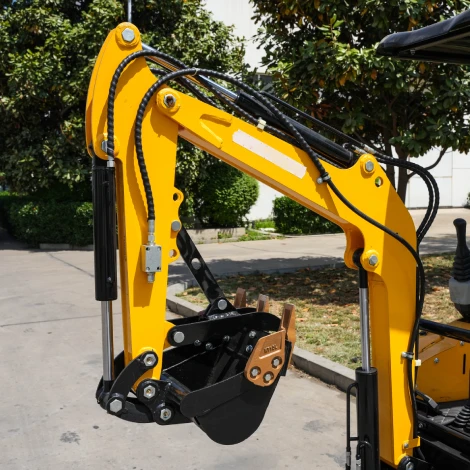

✅ Boom swing function can be optionally equipped according to your needs.
✅ Hydraulic thumb is optional as well, enabling the excavator to grip rocks, wood, and other materials.
Place Order Today!
Your standard configuration for 1.8 ton digger:
–Five engine brands to select from, Yanmar, Kubota, Koop, etc.
–Engine power ranges from 10 to 11.8kW.
–High-quality hydraulic systems and motors.
–Canopy, hydraulic joystick control, auxiliary for attachments.
Other optional designs: Steel tracks, AC, Quick coupler, and more attachments for your task requirements!
Join Our Dealer Team Now!
YUFAN is searching for reliable distributors worldwide who have experience handling construction equipment. We are continuously expanding our dealer network to reach more countries.
– We provide international standard machines with ISO certification.
– Solid Product knowledge and service training.
– Strong customer service and sales professionals will help you every step of the way.
FAQs
Yes! It can be replaced with a plunger pump. Let us explain the difference between a gear pump and a plunger pump:
– Different Working Principles
A plunger pump uses pistons to create pressure, offering higher pressure. But, a gear pump relies on the meshing of gears, resulting in relatively lower pressure.
– Distinct Structures
A plunger pump has a complex structure with various components. For example, pistons, cylinders, and motors. On the other hand, a gear pump is simpler, comprising gears, pump body, and end caps.
– Varied Performance
Plunger pumps excel in high-pressure and high-flow applications. Making them suitable for tasks like heavy digging and fast travel. While not providing extremely high pressure, gear pumps perform well in applications requiring stable low flow. For example, excavator vibration and parallel movement systems.
In summary, excavators equipped with plunger pumps and a load-sensitive valve achieve superior functionality. This combination precisely regulates the pace of excavator operations for optimal performance.
YUFAN compact equipment warranty is an important tool that ensures the machinery is repaired or replaced in case of a breakdown. There are many benefits of the YUFAN compact equipment warranty.
1. Protection from unforeseen costs.
One of the primary benefits of a compact equipment warranty is that it can protect you from unforeseen repair or replacement costs. If the machinery malfunctions or breaks down and is covered under warranty, you can make a claim and have the equipment repaired or replaced without incurring any expenses.
2. Best possible value for money.
Another benefit of a compact equipment warranty is that it provides you with the best possible value for your money. By having a YUFAN warranty, you can rest assured that you’re getting a product that has been thoroughly tested and is designed to last. If the machinery does break down, our warranty will ensure that it is repaired or replaced with the latest technology, giving you the best possible value for your investment.
3. Peace of Mind.
A YUFAN compact equipment warranty can also provide peace of mind to you, knowing you have protection in the event of a breakdown. It reduces stress levels and lets you focus on your primary business activities.
Certainly! The YFT18 excavator is equipped with the following specifications:
1. Engine Model: Kubota 4LT1114.
2. Hydraulic System:
– Multiple Directional Control Valve Brand: Beifang Valve
– Hydraulic Pump Brand: TJHD (Type: Piston)
3. Traveling and Swing Mechanism:
– Traveling Motor (Normal): Eaton
– Swing Motor: Eaton
4. Bucket Teeth:
– Tooth Bucket Size: 430mm
YUFAN mini excavator’s cabs are equipped with a heating system. We take ESG stragety in mind. The heating is generated using the engine’s residual heat.
The presence of heating vents is essential. The hot air would blow directly onto the driver’s face without them. It could cause drowsiness. Including heating vents allows warm air towards the driver’s legs and feet. Promoting a safer operating environment.
Given the compact space in the cab of small excavators, our installation solutions have undergone rigorous testing to ensure optimal performance and driver comfort.
The hydraulic pilot valve lock on YUFAN’s YFT18 control panel serves an important purpose. It helps regulate pressure and control the flow of hydraulic fluid in excavators.
This system ensures that the right amount of pressure is sent to different parts of the machinery. For example, cylinders and motors for smooth operation.
If the pilot pump fails, it can cause issues with the main control valve. As a result, it disrupts the entire hydraulic system’s function. So, it’s a critical component for keeping excavators working properly.
Excavator machinery parts, like the boom, arm, bucket, and engine, work harmoniously to dig, lift, and move earth effortlessly. The tracks, cabin, hydraulic system, and other components form a symphony of engineering, empowering the machine to conquer your excavation challenges.
