Your Trusted Supplier of 15T Hydraulic Excavator

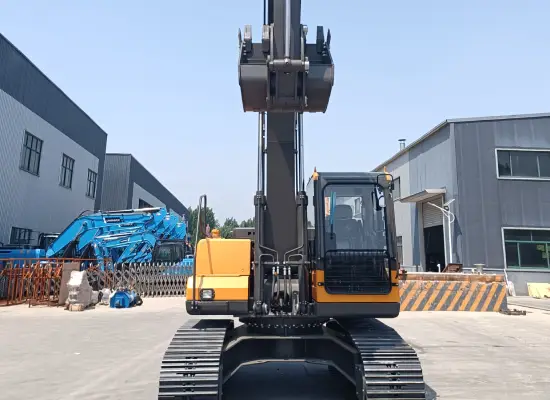

YFT150H Excavator Specifications
Crawler Mode: Engineered for soft soil, steep slopes, and heavy-duty breaking.
(Looking for maximum stability? Explore our [15 Ton Crawler Excavator Series])
Wheeled Mode: Optimized for hard surfaces, highway travel, and rapid site transfer.
(Need road-legal mobility? View our full [10.5T – 15T Wheeled Excavator] range)

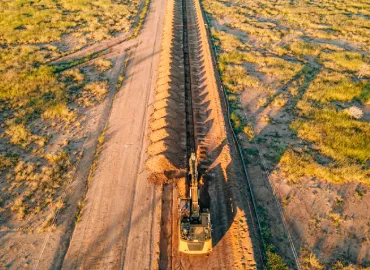

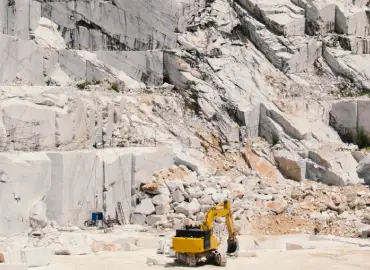

- Infrastructure & Mining

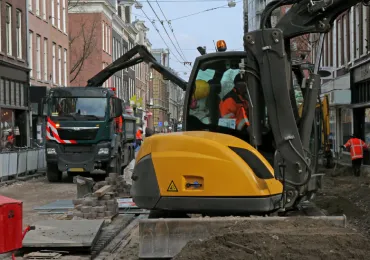

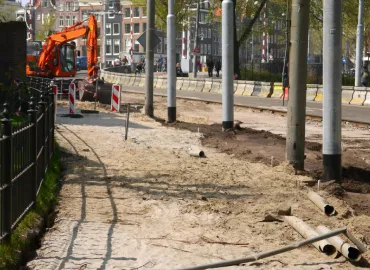

- Municipal & Road Maintenance
| Crawler Type Specifications | |
| Item | Value |
| Bucket Capacity | 0.6 |
| Swing Speed | 0-12 |
| Gradeability | 30 |
| Max. Bucket Digging Force | 91 |
| Max. Arm Digging Force | 55 |
| Engine Model | WP4.1N |
| Power/revolution speed | 110/2000 |
| System Pressure | 32 |
| Crawler Type Working range | |
| Max. Digging Height | 8627 |
| Max. Dumping Height | 6025 |
| Max. Digging Depth | 5343 |
| Max. Vertical Digging Depth | 4790 |
| Max.Digging Radius | 8198 |
| Min. Swing Radius | 2770 |
| Crawler Type Machine size | |
| Item | Value |
| Dimension (Length×Width×Height) | 7737×2900×2847 |
| Cabin Height | 2847 |
| Axle Base | 2950 |
| Wheel(track) Distance | 2000 |
| Minimum ground clearance | 280 |
| Tail Swing Radius | 2389 |
| Wheeled Type Specifications | |
| Item | Value |
| Bucket Capacity | 0.6 |
| Swing Speed | 0-12 |
| Gradeability | 25 |
| Max. Bucket Digging Force | 91 |
| Max. Arm Digging Force | 55 |
| Engine Model | WP4GN |
| Power/revolution speed | 110/2000 |
| System Pressure | 32 |
| Tire Model | 9.00–20 |
| Wheeled Type Working range | |
| Max. Digging Height | 8900 |
| Max. Dumping Height | 6300 |
| Max. Digging Depth | 5180 |
| Max. Vertical Digging Depth | 4745 |
| Max.Digging Radius | 8200 |
| Min. Swing Radius | 2650 |
| Max. Dozer Blade Lifting Distance | 390 |
| Max. Dozer Blade Cutting Distance | 90 |
| Wheeled Type Machine size | |
| Item | Value |
| Dimension (Length×Width×Height) | 7877×2550×3377 |
| Cabin Height | 3377 |
| Axle Base | 2500 |
| Wheel(track) Distance | 1955 |
| Minimum ground clearance | 290 |
| Tail Swing Radius | 2365 |
YFT150H Key Features

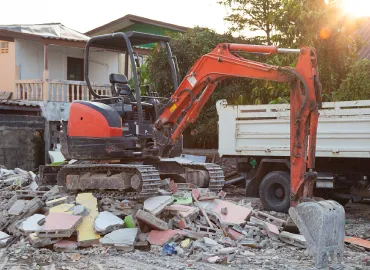

YFT150H is flexible equipment used in construction and utility. Drilling and material handling. It doesn’t take up too much space and is easy to transfer to other sites.

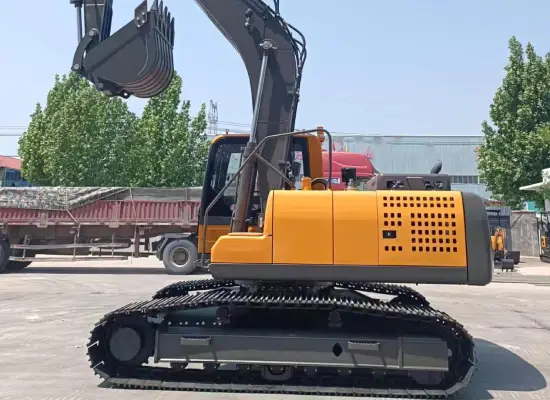

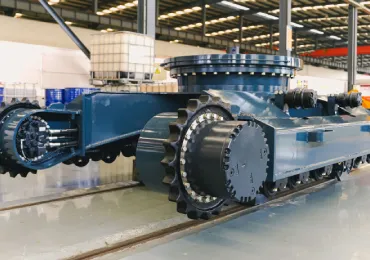

With a stable and tough undercarriage, the lifting capacity of YFT150H increased up to 15%. It brings your productivity up to the next level.
The YFT150H is designed to deliver outstanding excavation performance. As it optimizes the bucket digging forces through its high hydraulic pressures.

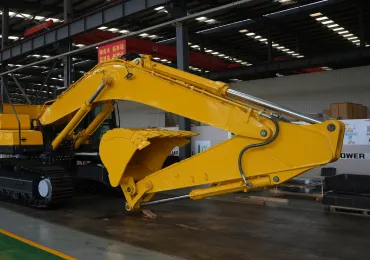

Steel castings in the boom and arm help to support heavy workloads. It ensures the machine has the toughest arm to take on your most challenging jobs.
When the machine has not been giving any instructions, but the engine is still running. The auto idle system will then initiate a shutdown to reduce fuel consumption.

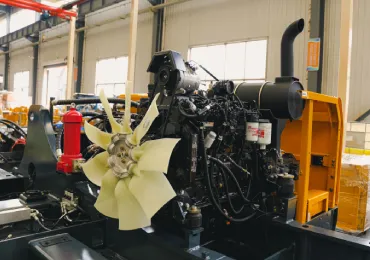

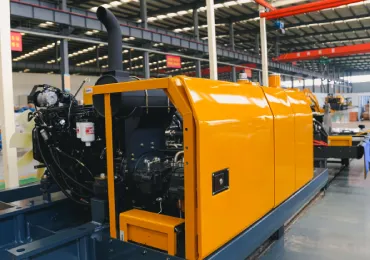

The large engine cover allows for easy access to repair and maintenance. Daily inspection is important to make sure your digging machine runs smoothly.

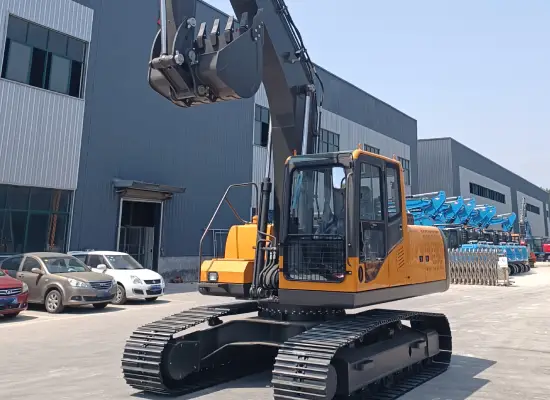

Modern Manufacturing with SOE Group's Investment
YUFAN Machinery is a compact machinery brand within the Yuanwang group. They’ve given us financial support to invest in factories set up.

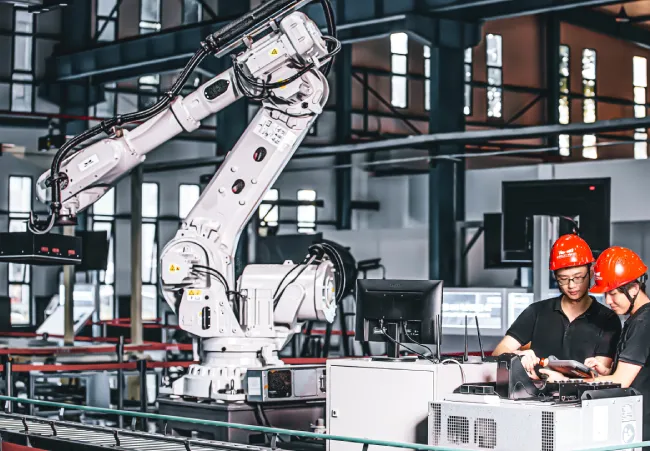

With help from the Yuanwang group, we’ve brought in new, modern manufacturing facilities. This helps with smooth operation. And get things done more efficiently.
Quality is a non-negotiable factor. We value our brand image as it represents China’s quality in this industry. To maintain our reputation, we follow a rigorous QC system in the manufacturing process.
Why Client Prefer Us
Your financial preferences matter to us; thus, we provide multiple payment options. Including T/T, LC, Western Union, PayPal, and credit cards. YUFAN is here to simplify the payment process and make it a convenient experience for you. Allowing you to invest in a YFT150H without financial strain.
We fully understand the urgency of your business needs and have streamlined our production and logistics. The lead time is approximately one month after we have the agreement. However, the delivery time varies depending on the location. Generally, it requires at least 15 to 40 days before it arrives at your doorstep.
Helpful Answers

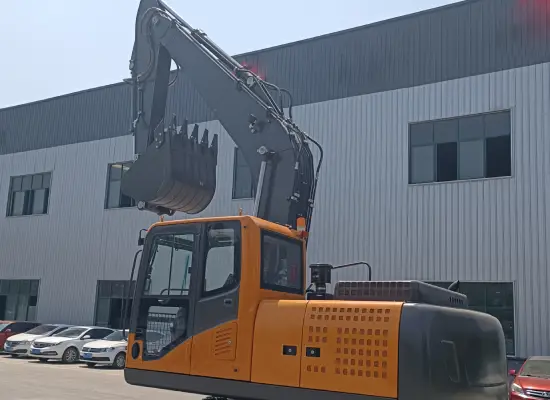

A 15-ton excavator weighs 30000 lbs.
The machine’s length is 24 ft. 2 inches.
The machine’s height is about 9 ft. 5 inches.
YFT150H is a multifunctional machine that is widely used in construction as well as in the farming industry. More and more clients worldwide have delivered versatility with many attachments.
YFT150H can perform various tasks like digging, lifting, and drilling with an auger, grapple, forklift, and hydraulic breaker. The bucket attachment serves as a default configuration. You may request a different attachment, as we provide OEM solutions for you.
Safety feature.
The cabin of YTF150H is created with ROPS and FOPS structures. It protects the operator during any kind of operation.
Customization Options.
For a more comfortable working environment, cabin or canopy, with AC or without. Choose a machine colour or customize your company logo.
Maintenance and Support.
We’re here to support you with a standard warranty and sufficient parts supply. Our technicians always help you with online inspections and repair guidance.
