3.5 Ton Excavator Supplier-YUFAN Machinery

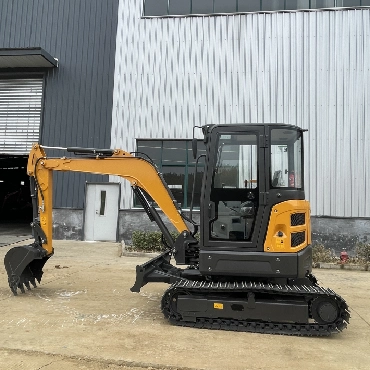

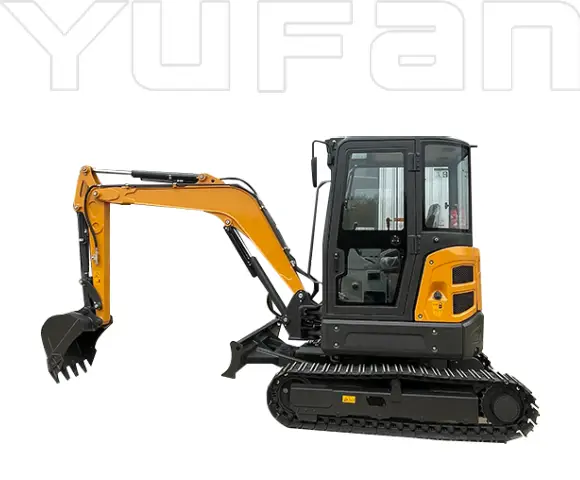

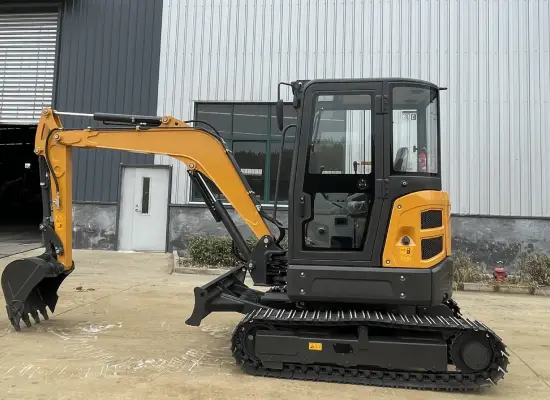

YFT35H is a 3.5 ton compact excavator made by YUFAN Machinery. It has an operating weight of 3200kg, and uses a Yanmar engine that can power up to 18.5kW. The YFT35H is a cost-effective solution for tackling most small and mid-sized projects.
>Easy access to limited workspace or narrow job sites.
>Kubota engine, Euro 5 emission standard.
>Closed cabin for safety and noise isolation.
>Low-effort hydraulic joysticks for precise handling.
Application: Gardening and landscaping, demolition, construction, and agriculture.
3.5 Ton Excavator Specifications
Engine Kubota D1703 Power 18.5/25hp@2200rpm Emission standard Euro V Cylinders 3 Bucket capacity 0.12m³ Ground clearance 295mm Max. travel speed 4.4km/h Machine weight 3810kg Dimensions 4915*1720*2525mm Axle base 1670mm Track gauge 1420mm Track width 300mm Track length 2154mm Swing radius/front 2835mm Swing radius/tail 860mm Max. gradability 30° Max. digging H 4800mm Max. dumping H 3406mm Max. digging D 3208mm Vertical digging D 2957mm Digging distance 5480mm Blade lifting H 365mm Boom swing angle 50°/60° Digging force/bucket 30.4kn
3.5 Ton Excavator Top 3 Features
Versatility is a crucial factor that determines excavator performance. YFT35H comes with a minimal rear overhang, which ensures versatility in tight spaces.

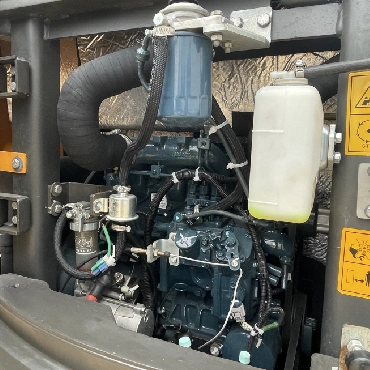

YFT35H features an innovative auto-idling system. It optimizes fuel efficiency by reducing engine RPM during standby mode. Reducing fuel consumption.

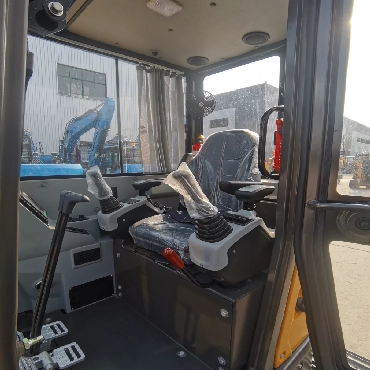

YFT35H has a safe and spacious cabin. It’s designed with operators’ comfort and productivity in mind. Ensuring a pleasant working environment.

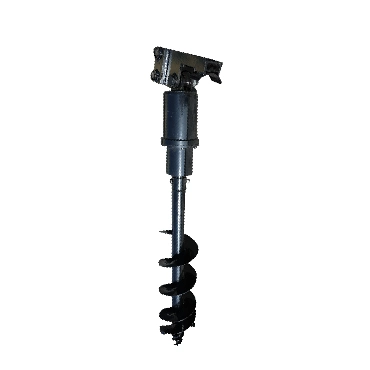

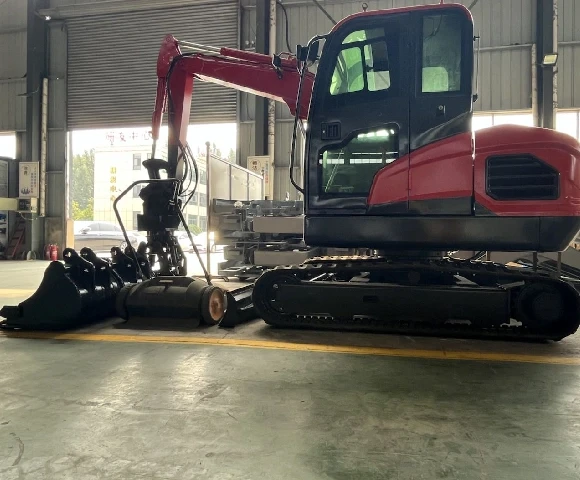

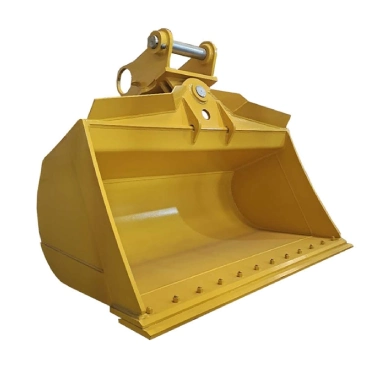

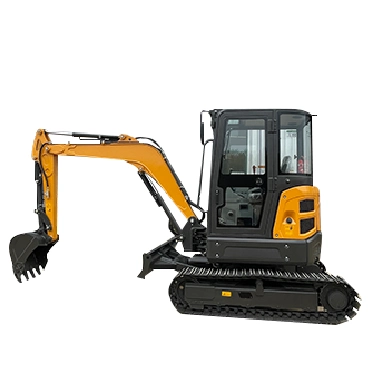

3.5 Ton Excavtor Popular Attachments
3.5 Ton Excavator for European Standards
YTF35H, 3.5 ton excavator, can be equipped with either rubber tracks or steel tracks. With a digging depth of up to 3208mm. You can use it in busy cities or construction sites, even with lots of traffic or other equipment around. YFT35H is CE-certified, and it meets the needs of more customers in European countries.
YUFAN is committed to increasing productivity through innovation and advanced features. Including hydraulic flow settings, load-sensing electronic pumps, flow-sharing control valves, and auxiliary circuits. They can be paired with a wide range of attachments. YUFAN is here to deliver practical solutions to exceed your expectations.
3.5 Ton Excavator Payment and Shipping
Payment methods. YUFAN is part of the Yuanwang group supported by the Chinese government. With their investment and support, we provide more payment options. We want to create an easy and smooth transaction for you!

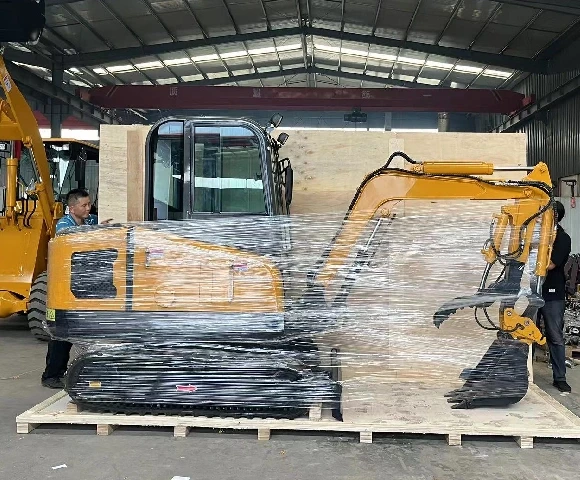

Production and Shipment. At YUFAN, we focus on delivering your orders promptly. Typically, it takes about 7-14 days to produce a machne with standard configuration. International shipping may take roughly another 1-2 weeks.
FYI: We can even fit 2 units of YFT35H in one container, saving shipping costs.

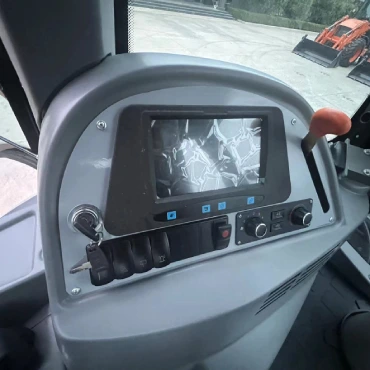

3.5 Ton Digger Standard and Optional Equipment
▪️Windshield wiper ▪️Rearview mirrors (left and right) ▪️Fabric seat with mechanical suspension (Cab) ▪️Standard boom ▪️Standard counterweight ▪️Air filter with drainage valve and electronic clogging indicator ▪️Servo-assisted hydraulic joysticks with electro-hydraulic proportional control ▪️Electro-hydraulic proportional swing control valve ▪️Two-speed travel with high and low gear ▪️Rubber tracks ▪️Standard dozer blade ▪️Operator’s manual ▪️Ignition key that opens all machine locks ▪️Standard LED work light (on boom) ▪️Battery disconnect switch ▪️Variable displacement pump ▪️Standard hydraulic oil and lubricants ▪️Digital display screen ▪️Air conditioning and heater, with fan ▪️DAB radio, Bluetooth, USB, and Aux-in (audio input) ▪️Dozer blade float function ▪️Additional LED work lights (front and rear of cab) ▪️Rotating warning beacon

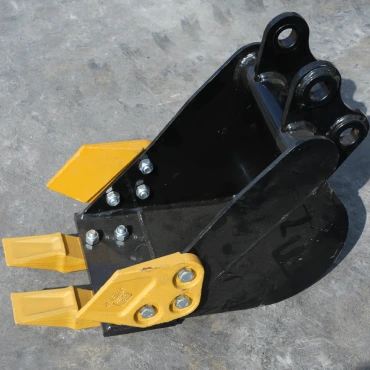

▪️Extended arm ▪️Second auxiliary (AUX2) circuit with electro-hydraulic proportional control ▪️Third auxiliary (AUX3) circuit with electro-hydraulic proportional control ▪️Grab configuration (AUX3 with diverter valve from dipper cylinder) ▪️Shut-off valves on dozer blade cylinders ▪️Steel tracks ▪️Constant flow configuration (e.g. for wood chipper), 31 L/min at 180 bar ▪️Hydraulic quick coupler configuration (single or double acting) ▪️Mechanical and hydraulic quick couplers ▪️Bucket
FAQs
Here’s a concise summary of other key specifications for the YFT35H excavator:
1. Main Valve Brand: Hengli.
2. Pump (Plunger) Brand: Hengli.
3. Swing Motor Brand: Eddie.
4. Traveling Motor Brand: Eddie.
5. Closed Cabin with:
> A/C
> Radio
> Audio
> Monitor
> Rear-View Camera
> GPS
6. Travel Speed (High/Low):
– Max: 4.4km/h
– Low: 2.4 km/h
7. Engine Type: In-line, water-cooled, 4-stroke.
8. Boom Swing Angle (Left/Right): 55°/65°
9. Track Type: Steel tracks. You can also be replaced with rubber tracks.
Yes, YUFAN offers excellent OEM service that allows you to customize various details of the machine according to your needs. From color selection to specific customization requirements, we can cater to your preferences and ensure the machine matches your desired specifications.
We provide a comprehensive one-year warranty for the 3.5 ton digger. Our warranty ensures that the machine is free from defects in materials and workmanship. Click to check our ‘Warranty Policy’!
Proper maintenance is crucial for the optimal performance and longevity of your small excavator. General maintenance includes regular lubrication to prevent excessive wear and tear caused by insufficient lubrication. Pay close attention to lubricating all components that require it.
Additionally, it is vital to strictly follow the technical guidelines provided by professionals for specific maintenance tasks.
