Mini Excavator Trailer Solution
YUFAN is your reliable supplier of compact excavators. Our compact excavators range from 0.8 tons to 6 tons. You can choose different trailer models for your different digger sizes.
YUFAN aims to provide the best trailer for mini excavators. We offer tailored trailer solutions for your excavators. Our trailers come with the added benefits of convenience and versatility. Plus, all our trailers are equipped with both handbrakes and electric brakes for enhanced safety.
- ISO and CE certified. Can issue COC certification.
- OEM solution. You can choose different sizes and colors for the mini digger trailer.
YUFAN Heavy Duty Mini Excavator Trailer Models
> Mini excavator trailer weights: 360-1600kg /794-2238 lbs.
> Braking systems: handbrakes(H) or electric(E).
> Compatible excavator models: YUFAN 0.8 ton – 3.5 ton excavators.
Weight 360kG Braking System H&E Overall Dimensions 3200*1600*1850mm Load Bed D. 2200*1200*200mm Weight 370kG Braking System H&E Overall Dimensions 3500*2000*1900mm Load Bed D. 2500*1500*200mm Weight 680kG Braking System H&E Overall Dimensions 4500*2050*2260mm Load Bed D. 3500*1580*200mm
Weight 680kG Braking System H&E Overall Dimensions 4500*2050*2300mm Load Bed D. 3500*1580*200mm Weight 1015kG Braking System H&E Overall Dimensions 5200*2500*2300mm Load Bed D. 4200*2000*200mm
YUFAN Small Excavator Trailer Models for Transporting
> Mini excavator trailer weights: 1015-1600 kg /2238-3527 lbs.
> Braking systems: handbrakes(H), electric(E), or Double axis electric(DE).
> Compatible digger models: YUFAN 4 ton – 6 ton excavators.
Weight 1650kG Braking System H&E Overall Dimensions 5200*2500*2500mm Load Bed D. 4500*2000*200mm Weight 1600kG Braking System H&DE Overall Dimensions 6200*2500*2300mm Load Bed D. 5000*2000mm

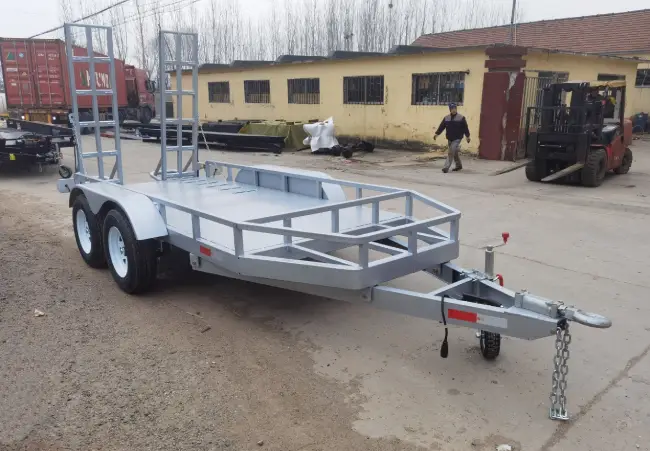

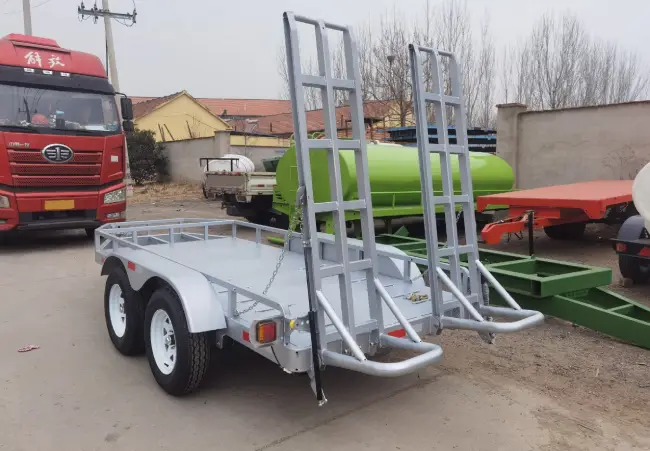

4 Wheel Trailer for Mini Excavator

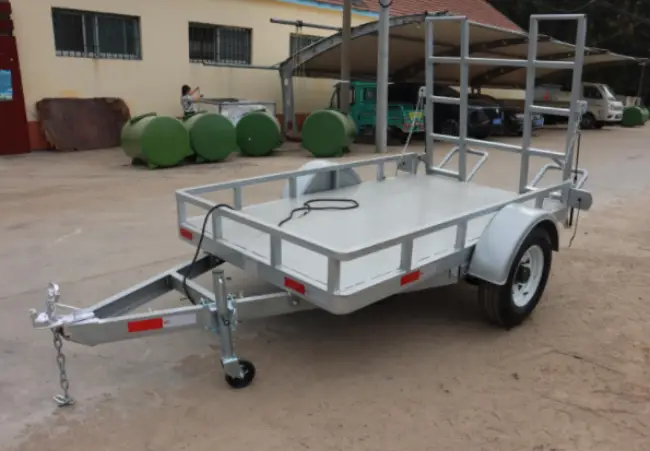

YFTZ-10 and 15 trailers are two wheel trailers. The rest of the types of trailers are all 4 wheeled excavator trailers.
The four wheel trailer is designed to be efficient in supporting the trailer’s tail.
Mini excavator trailer’s good wheels will provide balance while transporting the equipment. It also helps improve managing the load of the mini excavator.
Mini Excavator Trailer - Suitable Carrying Capacity
YUFAN mini excavator trailer frame is sturdy enough. Our trailer has a solid plate base supporting your mini excavator. So, your diggers will remain steady despite passing through unlevel roads or other terrains.
Also, YUFAN trailers for mini excavators are designed with versatility. The extra carrying capacity ensures your trailer is strong enough to carry your mini excavator attachments.
Other recommended accessories: bucket, hammer, thumb, snow blade, etc.
Learn More about YUFAN Excellence In Machinery Supply
Other Recommend Attachments for Excavators
FAQs
Loading a mini excavator onto a trailer requires planning and execution steps as follows:
1. Position the trailer on level ground. Ensuring it is securely connected to the towing vehicle.
2. Adjust the trailer’s ramps to the appropriate angle for loading. Considering the size and weight of the mini excavator.
3. Engage the excavator’s brakes and slowly drive it up the ramps. Ensuring the tracks align with the ramp width.
4. Once on the trailer, secure the mini excavator using straps or chains. It is important to ensure the trailer is centered and balanced.
5. Double-check all connections and attachments to guarantee stability during transportation.
6. Following our guidelines is important. Contact our expert for more tips on securing the excavator’s components. For example, the boom and bucket to prevent movement during transit.
1. Inspect the flatbed trailer’s tires for even wear and appropriate air pressure.
2. Check the bearings and brake system. For example, the condition of the brake pads and other parts.
3. Periodically clean the surface of the flatbed trailer to prevent rusting. Apply a suitable amount of lubricant to connection points, especially the steering pivot and latch areas.
4. Conduct routine painting or other anti-rust treatments on metal components.
5. Periodically check and maintain the trailer’s bearings by adding lubricating grease.
6. Inspect suspension system parts for any abnormal wear or damage.
7. Regularly inspect all bolts, screws, and fasteners for tightness and secure them if necessary.
8. Pay attention to maintaining the electrical wiring of the flatbed trailer. This step can prevent poor contact or short circuits.
