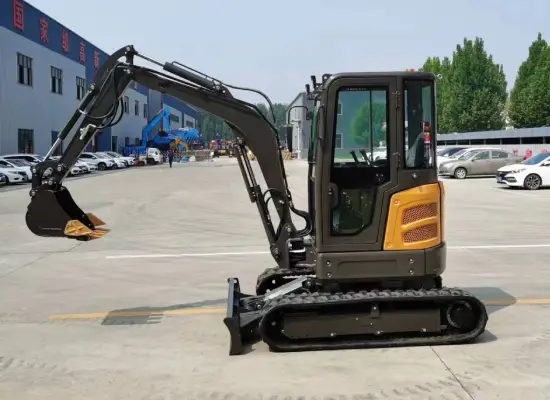

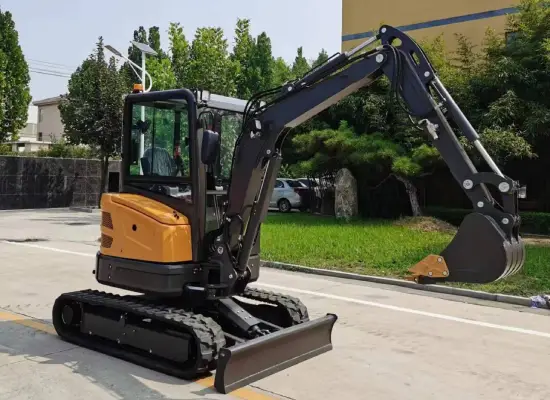

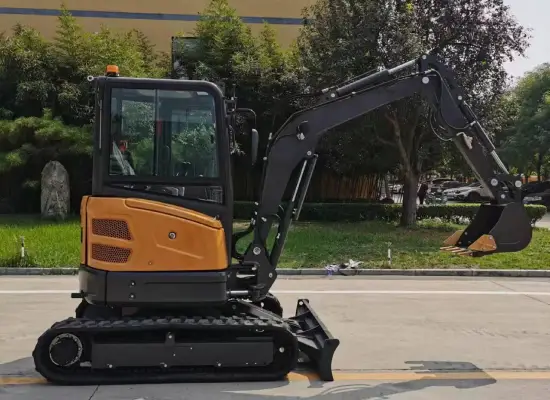

2.7 Ton China Mini Excavator
YUFAN is one of the reliable excavator manufacturers in China. All of our equipment is manufactured under strict QA systems.

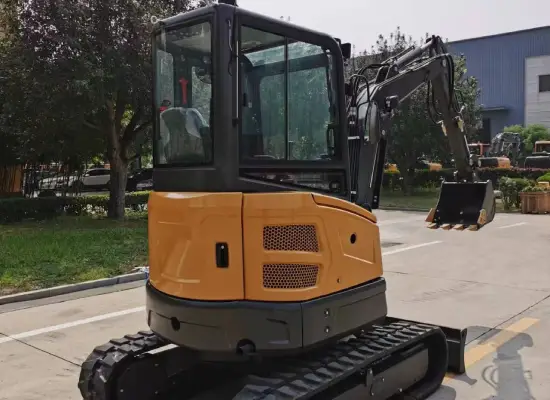

YUFAN 2.7 ton excavator has a zero-tail swing design. This feature can let you easily travel through and turn smoothly in tight spaces. It also has a spacious cab and robust undercarriage. Delivering unmatched stability for your long-term use.
> Support OEM/ODM. You can choose parts brand, color, logo, etc.
> Kubota engine. Meet EPA and Euro 5 emission standards.
> Rubber track. The undercarriage can be customized.
> 1-year warranty with after-sales service.
YFT27H - Excavator Specifications
| Power | |
| Engine | Kubota D1105 |
| Emission standard | EPA4/Euro 5 |
| Power/rotation speed | 14kW (19HP)@2200rpm |
| Number of cylinders | 3 |
| Standard bucket capacity | 0.1m³ |
| Track gauge | 1250mm |
| Minimum ground clearance | 286mm |
| Max. travel speed | 4.5km/h |
| Width of track | 300mm |
| Maximum grade ability | 58% |
| Machine weight | 2750kg |
| Performance | |
| Overall dimension (L*W*H) | 4195mm*1550mm*2840mm |
| Axle base (track length on the ground) | 1565mm |
| Swing radius at tail | 860mm |
| Maximum digging height | 4427mm |
| Maximum dumping height | 3005mm |
| Maximum digging depth | 2830mm |
| Maximum digging force/bucket | 23.5kN |
| Maximum digging force/arm | 14kN |
YFT27H - 2.7 Tonne Excavator Key Features

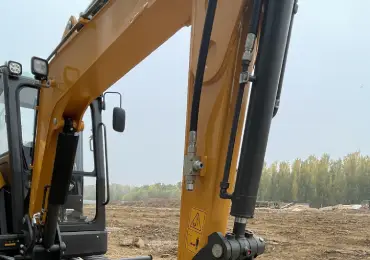

YFT27H’s hydraulic pilot servo operation system enhances control. Providing operators with a responsive experience.

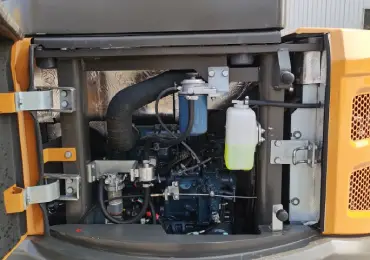

YFT27H’s engine meets stringent emission requirements in various regions. Ensuring optimal performance for your projects.

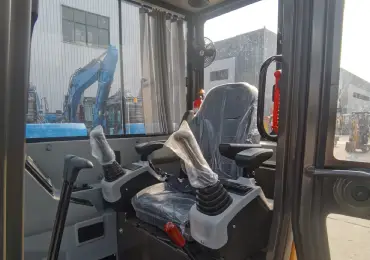

The YFT27H prioritizes operator comfort and safety. The cabin features a comfortable seat and excellent visibility.
The YFT27H is equipped with essential protective systems. For example, ROPS, FOPS, and automatic idle systems.

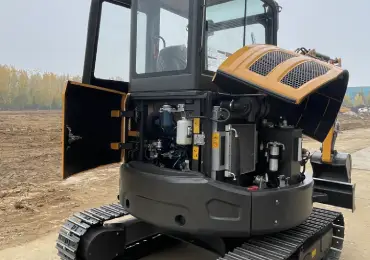

YFT27H has a user-friendly engine compartment. Allowing quick and convenient access to maintenance tasks.

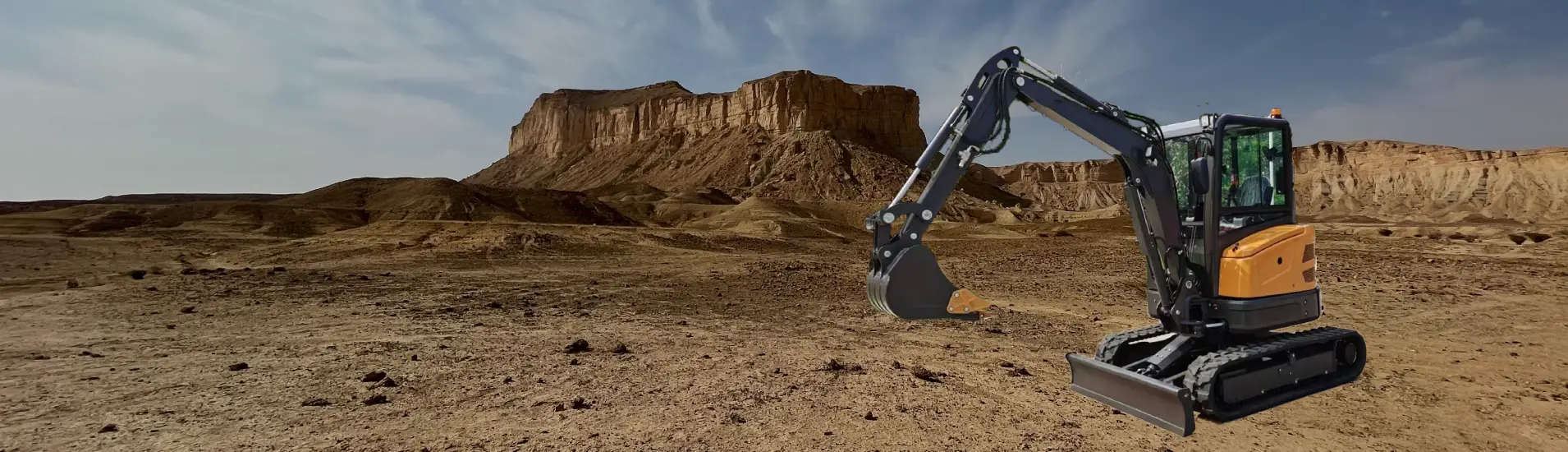

YFT27H - Compact Solution for Challenging Jobs
YFT27H zero tail swing excavator is designed to handle the jobs that larger excavators can’t. You can find it in many tasks. For example, landscaping, utility work, forestry, and other construction sites.
YUFAN lets solution-solving strategy come first. We also offer various excavator attachments for your different applications. It includes hammers, buckets, augers, grapples, snow blades, etc.
YUFAN Is Your Trusted Partner for 2.7 Ton Excavator
The SOE group backs YUFAN. So, we enjoy reliable financial and tech support for our machine manufacturing. We own 5 factories in China. The total production facilities are over 50,000㎡. Our stable annual production and robust supply chain ensure the punctual delivery of your large-scale orders.
The YUFAN expert team is always at your service. We provide remote technical guidance and comprehensive after-sales support for your machines.
YUFAN Excavator Payment and Delivery Solutions
YUFAN provides multiple payment options for your order:
– T/T Wire Transfer.
– L/C at straight
– Western Union
– PayPal
– Credit cards.
YUFAN offers shipping solutions for your machinery:
– DDU
– DDP
– DAP
– FOB
– EXW
– More choices based on your convenience.
FAQs
At YUFAN, we embody a quality-driven business culture. Our unique qualifications and capabilities set us apart:
1. Expertise and Experience:
YUFAN supported by an SOE background, providing a robust foundation of industry expertise.
2. QC Management System:
YUFAN adherence to QC procedures. For example, inspection and testing guarantee our products exceed industry standards.
In crafting our excavators, we focus on care and precision. So, we are leveraging modern manufacturing technology in our excavator manufacturing process:
– Precision Cutting. We use advanced laser-cutting techniques for accuracy in every part.
– Automatic Welding System. Ensuring a perfect fit for each component, enhancing durability and reliability.
– Detailed Assembly. The final step in our meticulous process. These detailed steps ensure a strong machine for your various projects.
