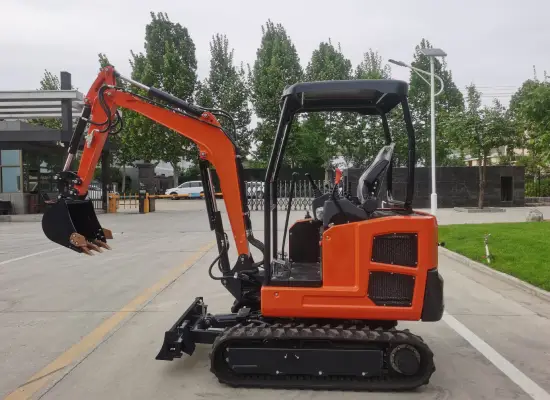

International Standard 1.8T Mini Excavator
YUFAN is your reliable Chinese mini digger manufacturer and supplier. We specialize in providing exceptional 1.8 tonne diggers for your various applications.

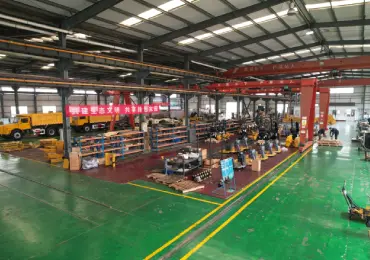

YUFAN enjoys financial and technical support from the SOE group. We own five production bases in China. Combined with the efficient supply chain, we will deliver your excavator ASAP.
- EPA, CE, and ISO certified.
- OEM solution. Boom, engine, undercarriage, safety options, etc.
- Our rigorous QA system ensures stable mass production for large orders.
- Enjoy a 1-year warranty.
YUFAN 1.8 Ton Excavator Specifications
| Power | |
| Engine | Laidong 3TE25 |
| Other engine option | Kubota or others |
| Power/rotation speed | 18.4kw (25HP)/2200rpm |
| Number of cylinders | 3 |
| Standard bucket capacity | 0.06m³ |
| Certification | CE, ISO, EPA |
| Minimum ground clearance | 485mm |
| Max. travel speed | 2.8km/h |
| Width of track | 230mm |
| Maximum grade ability | 35° |
| Machine weight (with canopy) | 1800kg |
| Performance | |
| Overall dimension (L*W*H) | 3800mm*1250mm*2280mm |
| OEM options | logo, color, backup camera, etc |
| Length of rubber track | 1630mm |
| Swing radius/back | 1125mm |
| Swing radius/front | 1720mm |
| Maximum digging height | 3370mm |
| Maximum dumping height | 2390mm |
| Maximum digging depth | 2050mm |
| Maximum lifting height/blade | 270mm |
| Maximum cutting depth/blade | 235mm |
| Maximum digging force/bucket | 15KN |
| Maximum digging force/arm | 11.5KN |
Explore YUFAN Top 5 Attachments for 1.8 Ton Digger

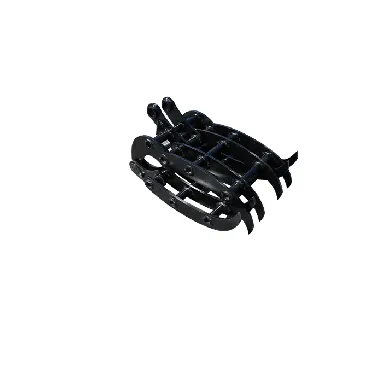

Our hydraulic grapples are 360° Rotatable. Our rotating grapples can rotate in all directions. It can offer excellent control when working in tight spaces and allows for efficient sorting and picking.
– Debris removal.
– Positioning of objects.
Our buckets have multiple types for you to choose from. For example, teeth buckets, flat buckets, and tilt buckets. It provides flexibility and efficiency in various construction and excavation jobs.
– Digging project.
– Trenching and grading.
– Transporting materials.

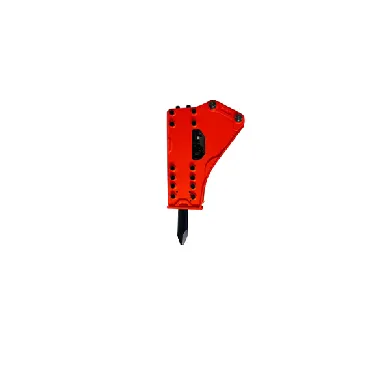

Our hammer can speed up tasks that require breaking or chipping hard surfaces.
– Foundation work.
– Concrete and rock demolition.
– Utility work or road construction.

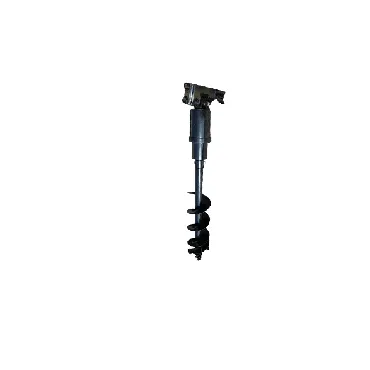

Our auger is efficient in drilling projects. The auger attachment can achieve quick and precise hole drilling. Finally, it speeds up digging holes and reduces manual labor.
– Fence post installation.

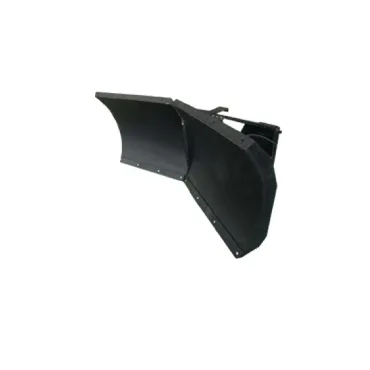

Snow blade attachment is one of our winter solutions for you. It ensures your safety and efficient operation in cold weather conditions.
– Winter maintenance
– Snow plowing
– Creating clean paths.
FAQs
Four major systems include the power, hydraulic, operating, and electronic monitoring systems.
The power system refers to the diesel engine. It has high compression ratio power, but it comes with high vibration and noise. The excavator transmission method refers to the hydraulic tank, hydraulic oil pump, main control valve, hydraulic cylinder, and hydraulic motor.
The operating system operates and controls the machine. Last but not least, the electronic monitoring system includes an electronic monitor, conductive circuit, and electronic sensor.
Three major devices are a working device, a walking device, and a rotary device. They cooperate to complete the basic requirements of the excavator’s line and turn work these actions.

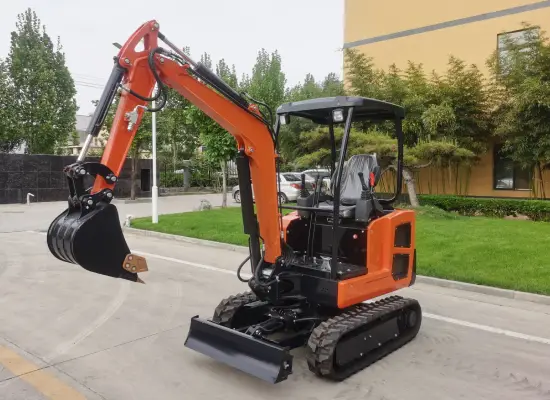

A YUFAN 1.8 tonne digger is approximately equal to 3968lbs. This conversion helps you understand the weight of the excavator in the imperial system.
