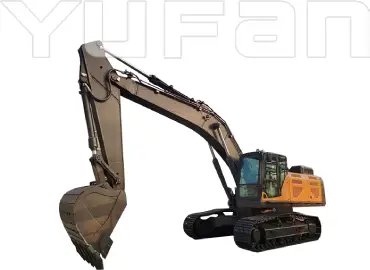

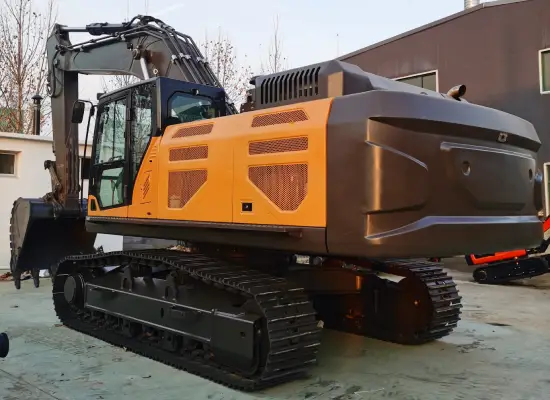

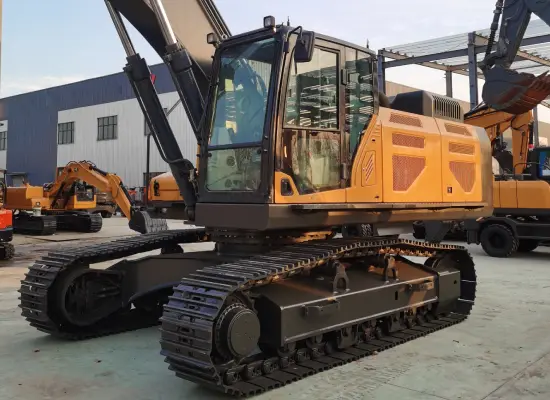

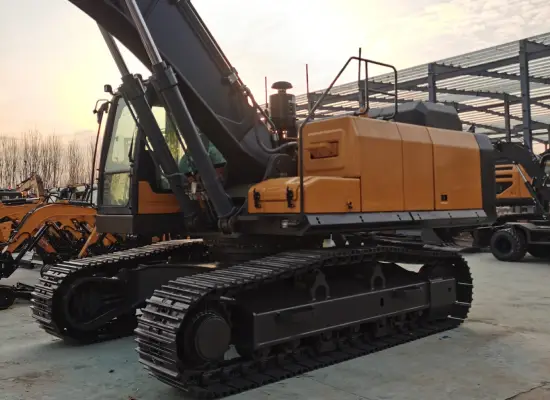

Your Professional 38 Ton Heavy Excavator
YFT380H are designed to withstand the toughest jobs on earth. Mining, construction, demolition and forestry. It has superior digging power with increased lifting capacity and improved efficiency.
>Protected cab to maximize safety during tough demolition jobs.
>Ultra-large windows ensure optimal visibility around the worksite.
>The body frame is made of heavy-duty plate steel reinforced with a bolt-head for enhanced durability.
>The bucket and boom cylinders feature extra protection to reduce the debris damage risk.
YFT380H Excavator Specifications
| Specifications | |
| Item | Value |
| Bucket Capacity | 1.7 |
| Swing Speed | 0-11 |
| Gradeability | 35 |
| Max. Bucket Digging Force | 244 |
| Max. Arm Digging Force | 200 |
| Engine Model | SL 9 |
| Power/revolution speed | 219/900 |
| System Pressure | 35 |
| Working range | |
| Max. Digging Height | 10511 |
| Max. Dumping Height | 7572 |
| Max. Digging Depth | 7027 |
| Max. Vertical Digging Depth | 6731 |
| Max.Digging Radius | 11178 |
| Min. Swing Radius | 3865 |
| Machine size | |
| Item | Value |
| Dimension (Length×Width×Height) | 11265×3190×3664 |
| Cabin Height | 3664 |
| Axle Base | 4099 |
| Wheel(track) Distance | 2590 |
| Minimum ground clearance | 536 |
| Tail Swing Radius | 3590 |
Why Choosing YFT380H
YUFAN excavators are fuel efficient and minimize environmental impact.
YUFAN Customized Option with Long Term Support
Our YUFAN 38-ton large crawler excavator has a strong Cummins engine. You can change it to another brand if you want. YUFAN has been an OEM machine manufacturer for a long time. We customize diggers for different needs. And we offer a one-year warranty and sufficient parts available to keep your digger working well for a long time.
YFT380H is a powerful machine that can be used in different projects. Including agriculture, construction, material handling, landscaping, demolition, mining, utility work, and waste management.

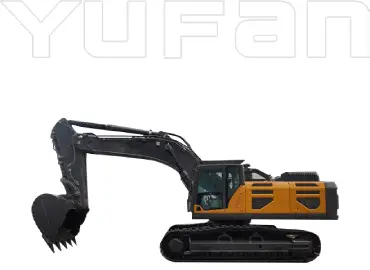

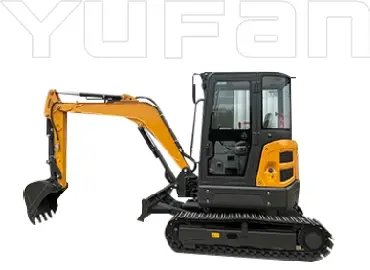

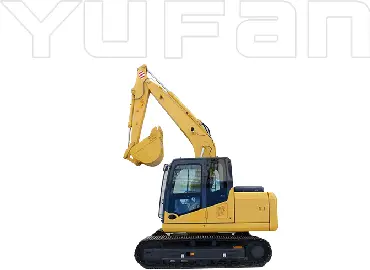

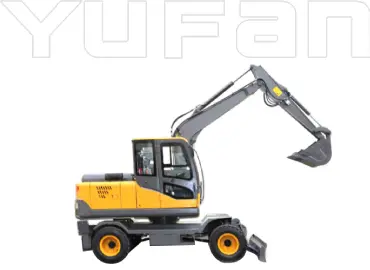

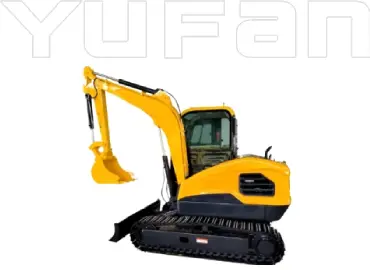

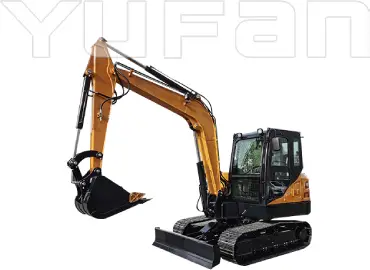

Other Excavator Sizes You May Also be Interested
Common Inquiries
Four major systems include the power, hydraulic, operating, and electronic monitoring systems.
The power system refers to the diesel engine. It has high compression ratio power, but it comes with high vibration and noise. The excavator transmission method refers to the hydraulic tank, hydraulic oil pump, main control valve, hydraulic cylinder, and hydraulic motor. The operating system operates and controls the machine. Last but not least, the electronic monitoring system includes an electronic monitor, conductive circuit, and electronic sensor.
Three major devices are a working device, a walking device, and a rotary device. They cooperate to complete the basic requirements of the excavator’s line and turn work these actions.
Excavators are known for their tonnes, which corresponds to their operating weight. For example, 23 tonnes of excavators’ operating weight is 230,000kg. Depending on user preferences and needs, different attachments can be matched with the excavator. Make sure to read specifications and manuals to better understand its associated maximum capacity.
Transporting construction machinery can vary widely depending on the type of machine. Generally, they’re transported via truck. However, large ones may need to be dismantled initially as they won’t fit in a single truck. Reassembly is usually necessary once they reach their destination. Multiple trucks or even air freight may be used to transport larger machines. In some cases, a driver could simply drive hydraulic excavators with tires to reach the desired site.
Three key tests are conducted to ensure performance and reliability when manufacturing construction equipment.
A performance test is completed where the movements of buckets, levers, arms, pedals, rotation speeds, and running are evaluated.
A durability test examines the piece for strength and sustainability; it checks how well the equipment holds up over an extended time.
A parts test makes sure that components can be exchanged properly according to instructions easily and accurately.
