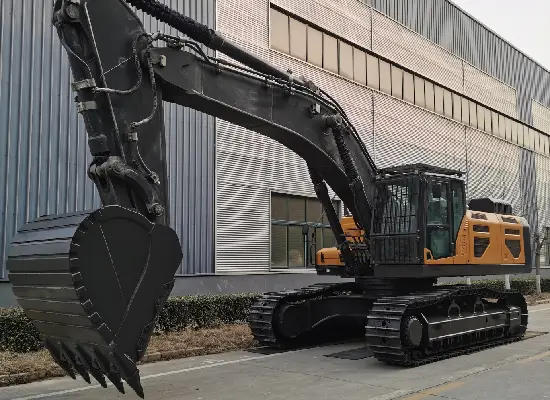

  • 60t-construction-excavator

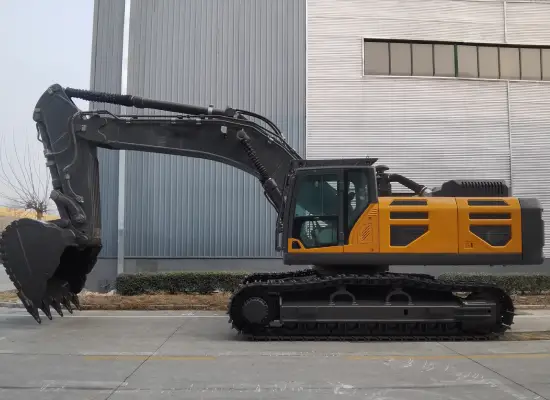

  • 60t-construction-digger

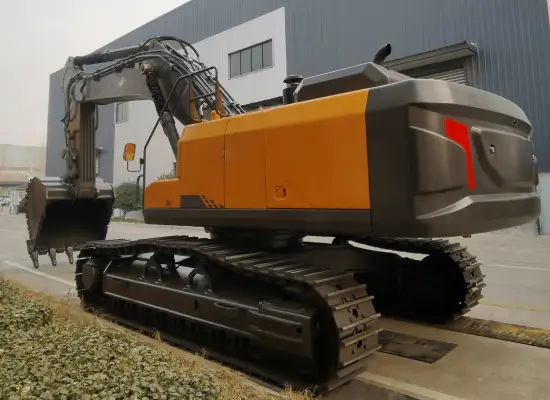

  • 60t-earthmoving-equipment
  • 60t-earthmoving-machine
  • 60t-construction-excavator
  • 60t-construction-digger
  • 60t-earthmoving-equipment
  • 60t-earthmoving-machine

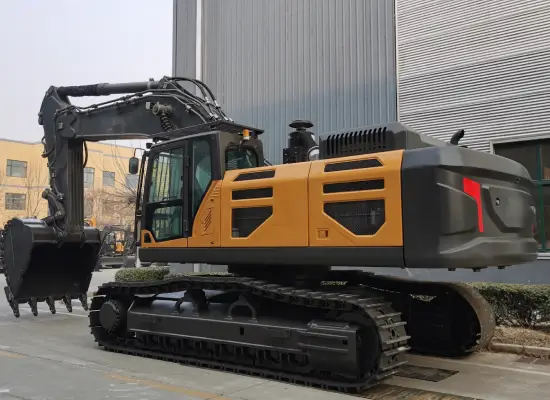

YFT600H - A New Level of Productivity

YUFAN 60 tons excavator YFT600H is the most powerful machine in its series. You can surely benefit from this user-friendly machine which focuses on efficiency, high quality, a comfortable drive, and a safe working environment.

– Meet Euro V and EPA emission standards.

– ISO and CE qualifications.

– Factory direct supply and fast shipment.

– Flexible payment options for your financial convenience.

– Pre-sale and after-sale services help you resolve any issues.

YFT600H Excavator Specs

Power
Engine Cummins QSM11
Emission standard Natioinal III emission
Power/rotation speed 298kw (405HP)/2000rpm
Number of cylinders6
Standard bucket capacity 3.0m³
Minimum ground clearance 602mm
Max. travel speed 2.4km/h
Width of track 600mm
Maximum grade ability 35°
Machine weight (with canopy) 58000kg
Performance
Overall dimension (L*W*H) 11690mm*3360mm*3810mm
Axle base (track length on the ground)4021mm
Swing radius/back3760mm
Swing radius/front　
Maximum digging height 11142mm
Maximum dumping height 7779mm
Maximum digging depth 5756mm
Maximum digging force/arm 253kn
Maximum digging force/bucket 325kn
Read More

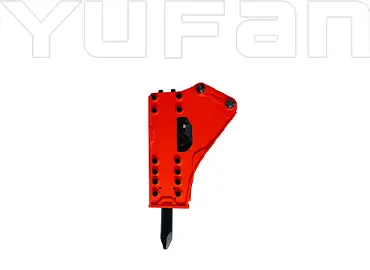

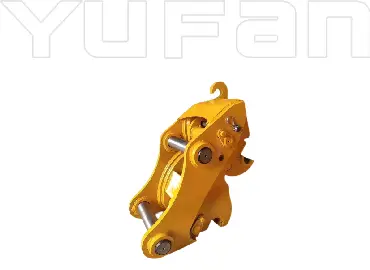

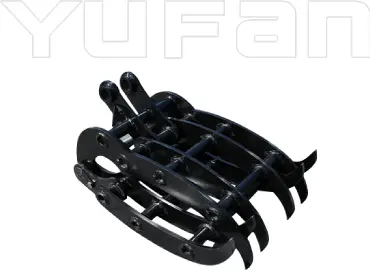

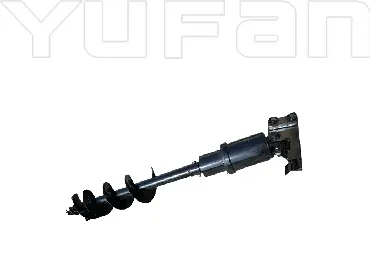

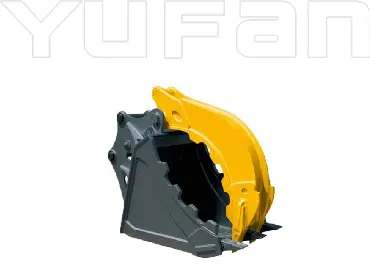

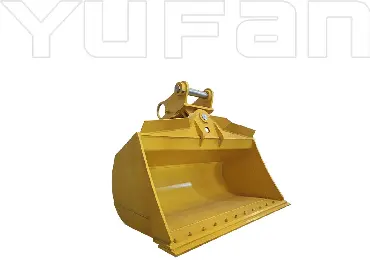

Attachments for Your YFT600H

OEM Solution for YTF600H

The YFT600H is a strong excavator with a tough Cummins engine and the choice of a Yanmar engine. It meets strict rules for emissions like Euro V and EPA. This powerful digger works well in lots of different jobs, like heavy-duty construction or utility projects. YTF600H is tough and reliable to get your job done productively.

YUFAN offers you options to customize the machine. You can pick the parts, components, and attachments you need. You can even choose the color and put your own logo on it.

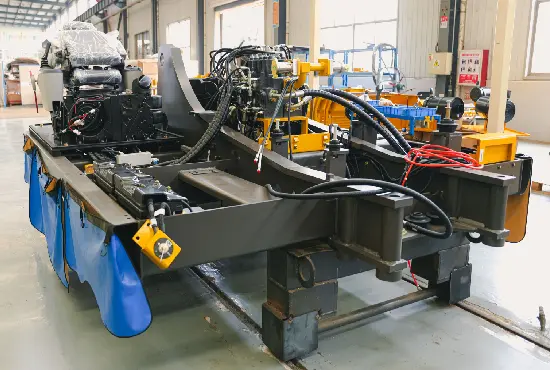

YFT600H Manufacturing Process

1. Laser Cutting. Using lasers to cut and shape metal pieces precisely.

2. Welding and Assembly. Joining Parts, and putting together different pieces to build the excavator’s main structure.

3. Surface Treatment. Cleaning and treating the metal to prevent rust and damage.

4. Painting. Paint enhances the appearance of the excavator.

5. Component Assembly/Integrating Parts. Combining the engine, hydraulics, and other pieces to make the excavator work efficiently.

6. Packing and Storage. Getting Ready to Go. Packing the excavator for transport and storing it until it’s needed.

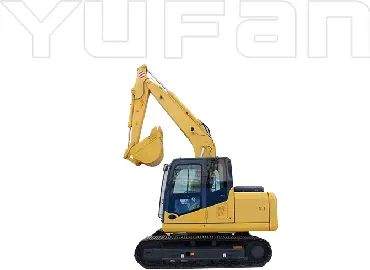

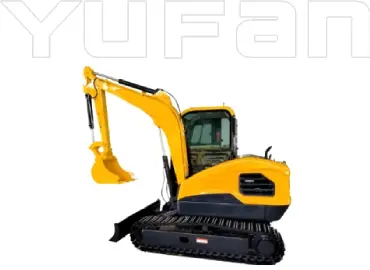

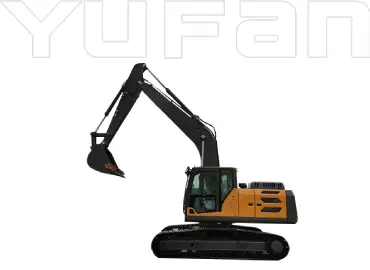

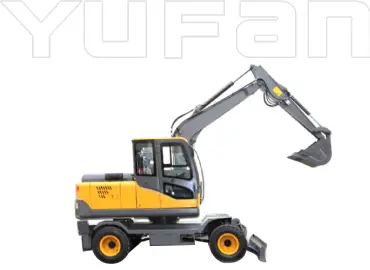

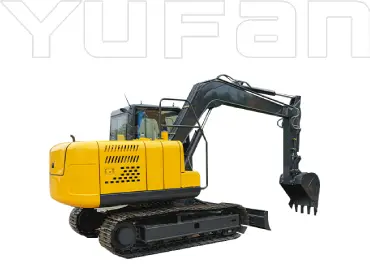

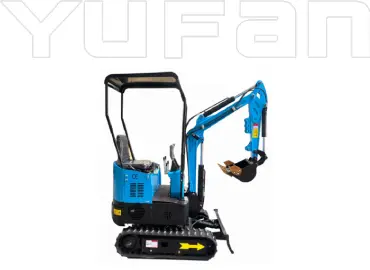

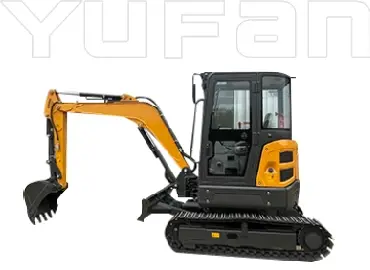

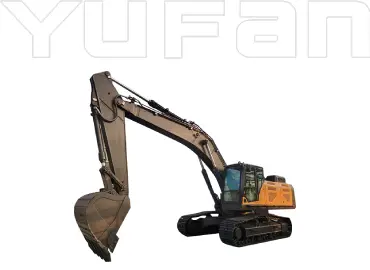

Other Excavator Sizes

Answers to Your Queries

How does the the hydraulic system works?
Currently, YFT600H is the largest hydraulic excavator we have.
An excavator’s hydraulics use hydraulic oil that gets pumped by the engine. The hydraulic oil is sent to different parts of the excavator through valves controlled by the operator. These parts include the excavator arm, bucket, and the wheels or tracks that make the machine move.
The operator can make these parts move by using levers or buttons in the cab. For example, they can make the arm go up or down, and the bucket movements. They can also make the machine turn forward or backward.
The excavator hydraulic system drives and controls the movement of the machine through the system of hydraulic oil, pump, and control valve.
What kind of tests do you conduct when the vehicle is finished?

At YUFAN, we conduct three major tests during the manufacturing process.

The first one is the performance test. Every piece of equipment is expected to reach the highest performance and productivity. We test it until it reaches the highest indicator under each category. Engine power, rotation speed, running speed, lifting and loading, the movement of bucket and boom, etc. And including all the functionalities in the cabin.

The second one is the durability test. We test the equipment long enough to ensure it has the strength and reliability to handle all the complex tasks under different situations.

Last but not least, parts and components test. We test parts exchange steps, ensuring they are easy to replace and user-friendly.

What sizes of excavators do you sell?

At YUFAN, we mainly have two collections. One is the Ultra Compact series, mostly for small business owners and home users. It ranges from 1 ton to 5 ton. The other is High-end earthmoving and construction excavators. It ranges from 1.5 tons up to 60 tons.

Anyway, if you require a specific size we don’t carry now, just let us know, and we’ll try to source it.

What about your warranty policy?

YUFAN machines come with a 1-year standard warranty. If you encounter a machine breakdown in the first year/1000 hours, we will supply the parts and components to get your machine back to work ASAP. Any further details, please drop us an email at info@yufanmachinery.com.

Do you need special training to drive them?

Most machines, such as mechanical equipment or power tools, are designed to be operated with a lever or wheel to reduce the required strength. However, operators must know how the machine works and the proper technique to use them safely and successfully. In some cases, this may require additional training or licensing. Practicing using the machine to stay comfortable and proficient is also important.

How much fuel does your machine use?

The amount of fuel needed varies widely depending on the machine size and the type of work. Contact our online customer specialist for further information regarding a certain model.
