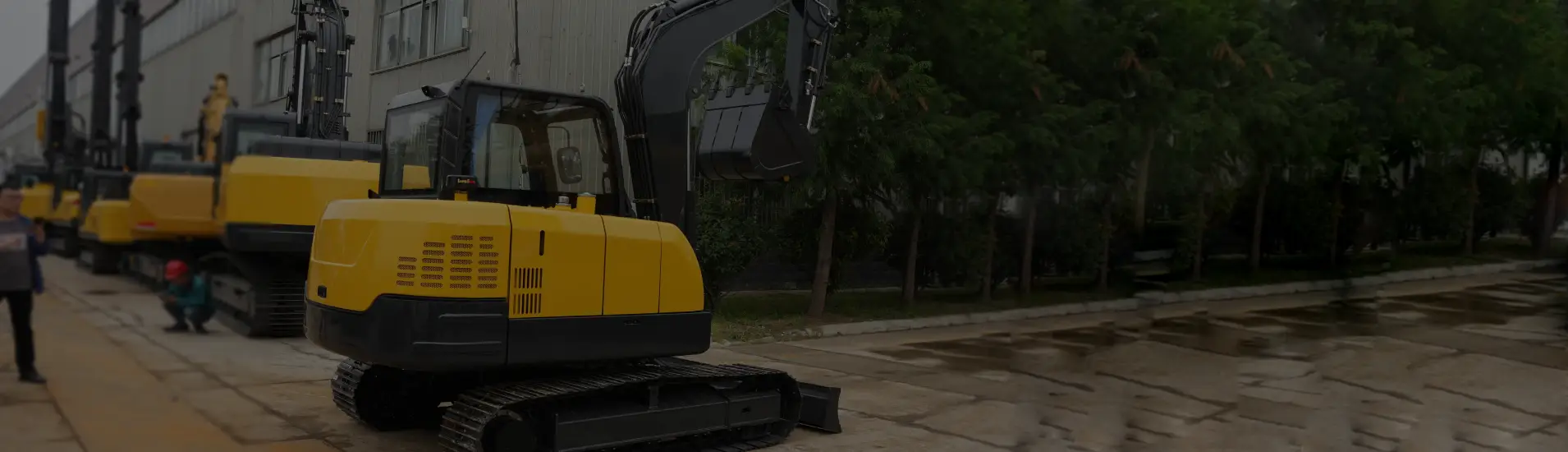

Best 7.5 Ton Excavator

7.5 Ton Excavator YFT75

7.5 Ton Excavator from YUFAN Excavator Factory

A 7-ton to 7.5 ton small excavator is one of the more popular types of machine on the market. As a top choice for many customers, the 7.5 ton digger is being used in many places. For example, farming, landscaping, and building roads and bridges.

The YUFAN 7.5 ton excavator adopts an upgraded hydraulic system. It fully utilizes the engine’s power, reduces fuel consumption, and improves efficiency. The 7.5 ton excavator also has a reinforced undercarriage, which is built for stability. It can handle slightly heavier tasks, with extended service life.

At YUFAN, we can equip your excavator with different working devices. So as to complete as many tasks as you need. Owning one machine but getting more work done!

7.5 Ton Excavator Specifications

Crawler Type Specifications
ItemValue
Bucket Capacity0.28
Swing Speed0-11
Gradeability35
Max. Bucket Digging Force56
Max. Arm Digging Force38
Engine Model4TNV94
Power/revolution speed35.9/2100
System Pressure27



Crawler Type Working range
Max. Digging Height7023
Max. Dumping Height5195
Max. Digging Depth3898
Max. Vertical Digging Depth2968
Max.Digging Radius6182
Min. Swing Radius2720
Max.Dozer Blade Lifting Distance382
Max.Dozer Blade Cutting Distance332

Crawler Type Machine size
ItemValue
Dimension (Length×Width×Height)6121×2262×2672
Cabin Height2672
Axle Base2209
Wheel(track) Distance1745
Minimum ground clearance375
Tail Swing Radius1797
Read More
Wheeled Type Specifications
ItemValue
Bucket Capacity0.3
Swing Speed0-12
Gradeability25
Max. Bucket Digging Force45
Max. Arm Digging Force36
Engine ModelYC3065-T490
Power/revolution speed48/2200
Tire Model24
Power/revolution speed8.25–16



Wheeled Type Working range
Max. Digging Height6297
Max. Dumping Height4677
Max. Digging Depth3612
Max. Vertical Digging Depth2460
Max.Digging Radius6248
Min. Swing Radius2347
Max.Dozer Blade Lifting Distance310
Max.Dozer Blade Cutting Distance132

Wheeled Type Machine size
ItemValue
Dimension (Length×Width×Height)6260×2044×2816
Cabin Height2816
Axle Base2400
Wheel(track) Distance1536
Minimum ground clearance354
Tail Swing Radius2000
Read More

Excavator Models Comparison

  • 6-ton-digger
    EngineYanmar
    Engine power36.2-46.3kW
    Bucket capacity0.22m³
    Max. travel speed4.2km/2.2h
    Gradeability70°
    Max. dumping h3980mm
    Max. digging d3860mm
    Vertical digging d3040mm
    Digging force38.5kN

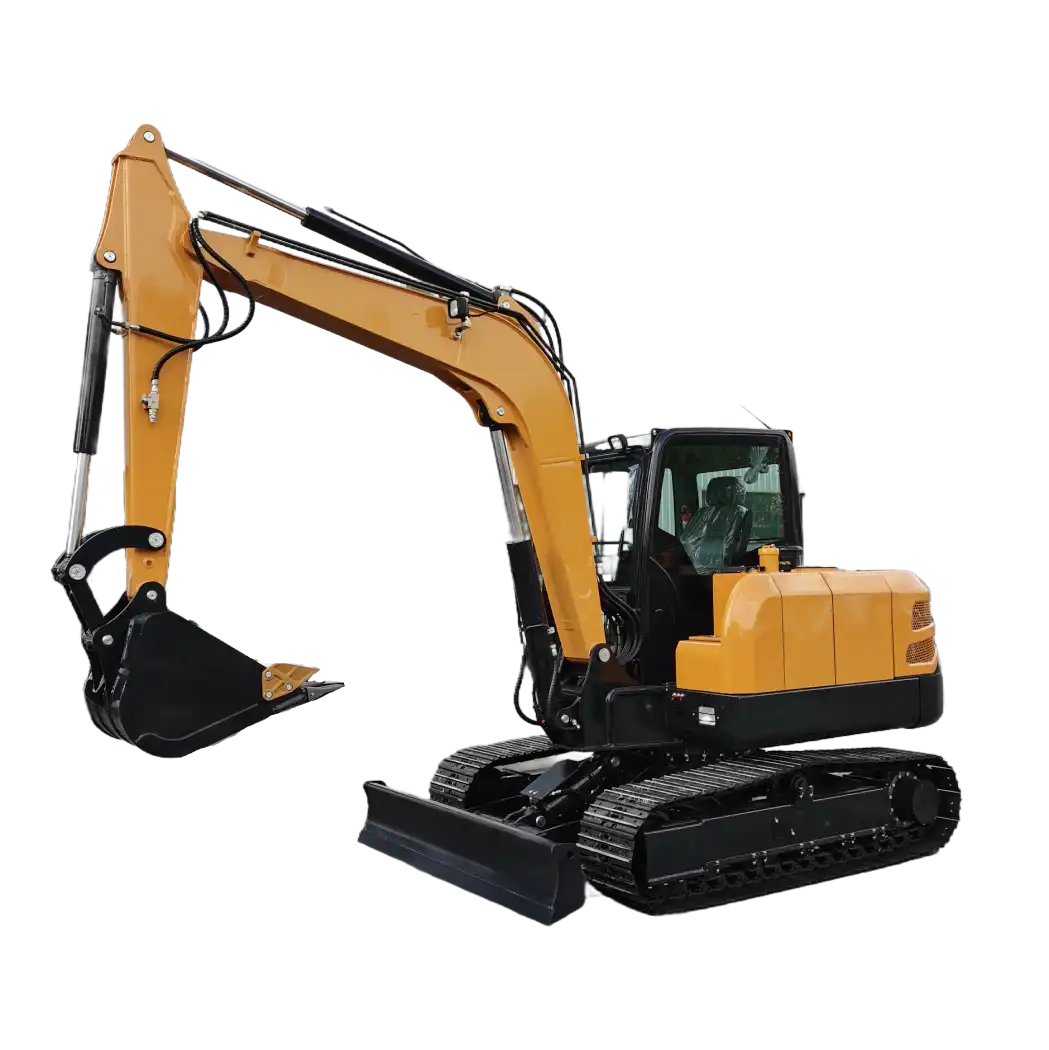

  • 6.5 ton excavator
    EngineKubota V2607
    Engine power42.4kW
    Bucket capacity0.21m³
    Max. travel speed2.4km/h
    Gradeability35°
    Max. dumping height3845mm
    Max. digging depth3808mm
    Digging force/bucket48kN
    Digging force/arm35kN

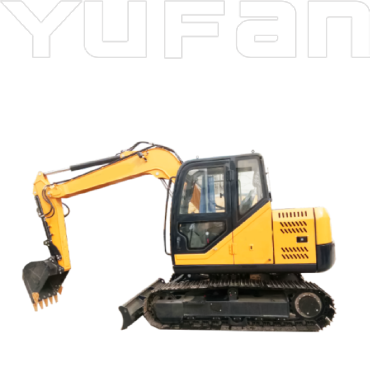

  • excavator-7-ton
    EngineKubota
    Engine power42.4kW/2000rdp
    Bucket capacity0.21m³
    Max. travel speed2.4km/2.7h
    Gradeability35°
    Max. dumping h3845mm
    Max. digging d3808mm
    Arm digging force35kN
    Bucket digging force48kN
  • chinese-excavator
    EngineYanmar
    Engine power54.3kW/2200rdp
    Bucket capacity0.34m³
    Max. travel speed5.1km/2.7h
    Gradeability70°
    Max. dumping h5065mm
    Max. digging d4038mm
    Vertical digging d3505mm
    Digging force60kN

Reliable Engines with Global Support

YUFAN excavators are equipped with high-quality engines from globally recognized brands such as Briggs & Stratton, Koop, Yanmar, and Kubota, selected based on model and power requirements. These engine brands have wide global service networks, so sourcing replacement parts locally is convenient and worry-free.

To meet varying emission standards across different countries and regions, we offer flexible engine options. Currently, we can supply excavators that comply with both EU Stage V and EPA emission standards, ensuring smooth import and operation in regulated markets.

reliable engines

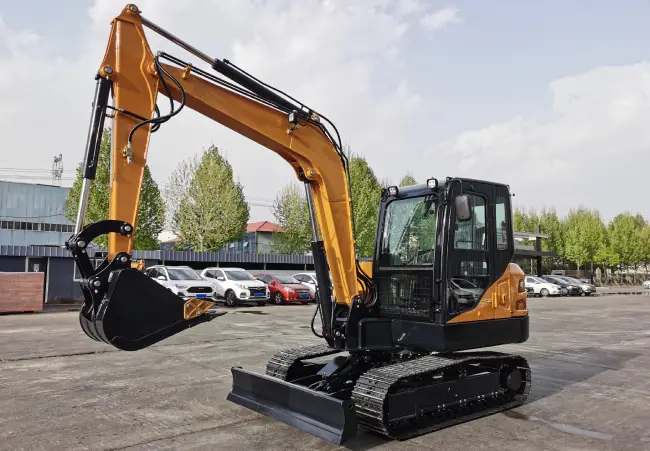

china-excavator-factory

7.5 Ton Excavator with Factory Direct Supply

YUFAN is a professional small excavator manufacturer in China. We design and produce all excavators in our own factories. Thus, all equipment will be shipped out immediately after production and quality checks. This helps in saving costs for you.

Modern Production Line for 7.5 Ton Excavator

We have a modern production line for 7-ton to 7.5-ton excavators. We conduct multiple tests throughout production to check the functions and responsive capability.

Manufacturing procedures: laser cutting to fabricate parts, automatic welding and assembly, testing, painting, final check, and dispatch.

  • 7.5-ton-excavator-china-factory

Pre-sale and After-sale for Every Unit and Parts

We offer pre-sale and after-sale services. We respond promptly to your inquiries. You can share your concerns with us, and we’re always here to support you, with possible solutions standing by.

*100% of excavator parts, components, and attachments shipped out within 3 to 7 days.

team-collaboration
7.5 ton machine-delivery

Short Lead time and Fast Delivery

Standard models take a shorter period to produce, with a lead time of about 2 weeks. However, if you’re looking for an excavator with customized features, it might take a bit longer. Rest assured, we maintain sufficient stocks for customization purposes. The lead time could be 3 to 6 months.

*Payment options that we accept: T/T, LC, and PayPal.

Matching Attachments for 7.5 Tonne Excavator

A small excavator, like one that weighs 7 to 7.5 tons, can handle slightly larger projects well. Compared to a mini excavator, which weighs 0.8 to 3.5 tons and can handle most household tasks. A slightly larger excavator can move more materials at once, saving you time and effort. A 7.5-ton excavator might seem a little bigger, but it can still fit into some small spots and carry out tasks efficiently.

Attachment options: Bucket, auger, grapple, hydraulic hammer, trailer, thumb, rake, quick hitch, etc.

We keep sufficient attachment stocks, especially for those most frequently used ones. And we guarantee a fast ship-out within 3-6 days for your attachment order.

attachment-order

Frequently Asked Q&As

How does a 7.5 ton excavator compare to smaller excavators?

Compared to the smaller excavators, a 7.5 tonne digger offers amazing benefits. That makes it perfect for more demanding projects.

– Greater digging depth and reach
– Higher lifting capacity and breakout force

7.5 Ton Digger:
Max digging depth 3808mm.
Max dumping height 3845mm.
7.5 ton lifting capacity: max lifting weight 7 tons.
Digging force: 35kN.

Smaller Digger, take a 3.5-ton digger as an example:
Max digging depth 3208mm.
Max dumping height 3406mm.
Lifting capacity: max lifting weight 3 tons.
Digging force: 30.4kN.
